Aluminum Profile "Q" 78in Recessed Application

SKU:
ALUMQ6
Availability:
Usually Ships in 24 Hours
Project Support Dotless LED fixtures
Due to shipping size restrictions, 94 inches is the MAX size for free shipping. You can select full-size 8ft (96 Inch) under product options before adding them to your cart, you will be charged with a FEDEX OVERSIZE fee at checkout.

Volume discount rates

Below are the available volume discount rates for each individual item when you purchase a certain amount

Buy 10 - 24 and pay only $59.76 each
Buy 25 - 49 and pay only $56.61 each
Buy 50 - 99 and pay only $55.04 each
Buy 100 or above and pay only $53.47 each
$62.90

/ Description

Aluminum Profile "Q" is a recess mounted aluminum housing for high-output LED strips. It can be recessed into drywall to create flush-mounted lines of lighting. When used with our high-density, DOTLESS LED strips you can create an evenly diffused, dot-free, 7/8 Inch line of recessed lighting. Use the provided spring activated clips to easily recess the housing into your space (NOTE: space required above drywall). Aluminum Profile "Q" can accommodate any high-output LED strip up to 0.72 Inch wide (18.3mm) and properly dissipate the heat for maximum longevity. Aluminum Profile "Q" is sold in 6.5ft lengths (78") as a completed kit including a pair of end-caps, (3) spring activated drywall-clips, and a premium poly-carbonate frosted lens (diffuser). View Spec Sheet Here!


Features


  • Narrow High-Output Recessed lighting

  • High-Quality aluminum draws the heat out of your LED's to preserve lifetime.

  • Easily Recessable using provided clips OR direct-screw method recommended

  • Protect strips from the elements

  • Well-Stocked and Ready to Ship from our Miami, FL facility.

Quick Specs

Length

6.5ft (78")

Width

0.93 Inch (1.42" w/ flange)

Height

1 Inch (1.10" w/ flange)

Lens

Frosted

Max Light Output

High (6 Watts/ft)

Max Strip Width

0.72 Inch (18.3mm)


Applications

Aluminum Channel "Q" is a compact, recessable aluminum extrusion that is capable of holding high-output LED strips. It's deeper design allows you to make DOTLESS fixtures with almost any LED strip (minimum LED density 16ft-60/M). It is suitable for residential or commercial lighting applications. Linear recessed lighting adds an elegant modern touch to any space.


Installation

With aluminum profile "Q", one has the option of using spring activated mounting clips, or direct-screw method.


Mounting Methods


Mounting Method #1 (Counter-sunk Screws)
  1. Drill hole suitable to your mounting screw.

  2. Counter-sink hole so LED strip can sit flush over flat-head screw.

  3. Screw housing into framing or solid ceiling above drywall. Use appropriate screws. Each 78 Inch run should use (3) screws.

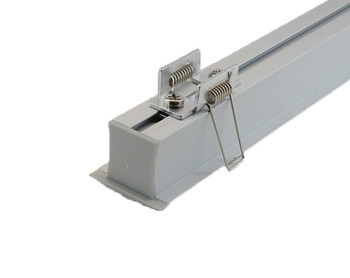

Mounting Method #2 (Drywall Retaining Spring Clips)
  1. Attach provided spring clips to the rear of channel

  2. Be sure that the spring clips have space to open when they are released inside of the cavity.

  3. Squeeze clips as you insert them allowing the housing to go into the cavity.

  4. Spring activated clips will automatically engage and hold onto drywall once inserted. Use a minimum of (3) clips per 78 Inch length.


Cutting

To cut your aluminum profiles and make your lighting fixtures a custom length, simply snap the lens onto the profile, and place the channel onto a miter saw with the lens facing down. By doing this you can easily cut both the channel and lens to your desired length at the same time. We recommend using a NEW fine tooth blade to cut your aluminum channels for LED strips. The diffuser/lens is fragile and will easily break with an old blade. The easiest way to avoid breaking a lens or diffuser is to lower the saw blade slowly while cutting.


DOTLESS Lighting!

To achieve dot-free evenly diffused lighting in Aluminum Profile "Q" choose from the following DOTLESS LED strips.
12V DOTLESS White LED Strip (Most Popular!)
24V DOTLESS White LED Strip


Best Used with the Following GlowbackLED Products


Extra Pair of Drywall Spring Mounting Clips for Aluminum Profile Q
UL-Listed White LED Strips
RGB Color Changing LED Strips
RGBW Color Changing and White LED Strips
Dimmable and Nondimmable Power Supplies
Connectors
Recessed Aluminum Profile Q 78 Inch
Project Support Dotless LED fixtures
Due to shipping size restrictions, 94 inches is the MAX size for free shipping. You can select full-size 8ft (96 Inch) under product options before adding them to your cart, you will be charged with a FEDEX OVERSIZE fee at checkout.
View AllClose

/Product Specs

Specifications

Make sure to review product specs before purchasing LED strip. Contact-Us for assistance with product specs, application, or installation: 1-800-679-4902 | M-F | 9AM-5PM EST | Sales@bluegateinc.com

Length 6.5ft (78")
Width 0.91 Inch (1.42" w/ flange)
Height 1.10 Inch
Lens Frosted
Max Light Output High (6 Watts/ft)
Max Strip Width 0.91 Inch (23mm)
short-desc-sec:

78 inches | 0.93" W x 1" H

Mount Type:
Recess w/ Flange/Trim
Suggested MAX Wattage:
6 Watts/ft
Light Output:
High Output
MAX LED Strip Width:
15mm
Profile Width:
0.75 - 1 Inch
Profile Height:
1 - 2 Inches
Profile Length:
6.5ft (78 Inches)
Applications:
General Lighting
Applications:
Commercial/Office Lighting
Applications:
Retail and Museum Lighting
Spec Sheet:
