Aluminum Profile "P7" 8ft (94") Suspension Ultra High-Output Light Fixture Capable

SKU:
ALUMP76F-94
Availability:
Usually Ships in 24 Hours
Project Support Dotless LED fixtures
Due to shipping size restrictions, 94 inches is the MAX size for free shipping. You can select full-size 8ft (96 Inch) under product options before adding them to your cart, you will be charged with a FEDEX OVERSIZE fee at checkout.

Volume discount rates

Below are the available volume discount rates for each individual item when you purchase a certain amount

Buy 10 - 24 and pay only $167.11 each
Buy 25 - 49 and pay only $158.31 each
Buy 50 - 99 and pay only $153.91 each
Buy 100 or above and pay only $149.52 each
$175.90

/ Description

For modern architectural commercial lighting designs, our aluminum profile "P7" is a perfect solution. Aluminum channel "P7" can accommodate up to two rows of high-output LED strips, with an inner dimension of 1.60 Inch (40.6mm) wide, and properly disperse heat generated by the strips. The housing features an integrated "slot" to hold an LED driver or power-supply effectively allowing users to create their own light fixtures for general lighting applications. Aluminum Extrusion “P7” is conveniently sold in 8ft lengths as a completed kit including a pair of end-caps, suspension kit, and one premium poly carbonate, UV-resistant frosted lens. Order today to create your own commercial linear light fixtures! View Spec Sheet Here!


Features


  • Modern design suitable for commercial lighting

  • Heat-Sinking Design! Can hold (2) rows of high output, ultra-bright LED strips while maximizing their lifetime by drawing out excess heat.

  • Install your transformer inside! Can accept line voltage when properly configured.

  • Use with (2) rows of DOTLESS LED Strips to get evenly diffused, dot-free lighting.

  • Fast and Easy Installation using suspension kit, or screwing into surface

  • Protect strips from the elements if used in outdoor environments.

  • Well-Stocked and Ready to Ship from our Miami, FL facility.

Quick Specs

Length

8ft (Actual Size 94", 96" available w/ shipping surcharge)

Width

1.96 Inch (1.82" slot width)

Height

2.76 Inch (1.56" slot height)

Lens

Frosted

Max Light Output

Ultra-High (10 Watts/ft)

Max Strip Width

1.56 Inch (39.6mm)


Applications

Aluminum profile "P7" can be surface mounted, as well as suspended. It's design allows one to achieve 2 Inch wide evenly diffused and modern high-output lighting, making it perfect for use in warehouses, garages, and for any creative lighting solutions one can think of! Install a driver within the rear of the channel so line voltage can be supplied directly to your light fixture. Although intended mainly for indoor use, Aluminum Profile "P7" can be used with waterproof components in outdoor environments.


Installation

With aluminum profile "P7", one has the option of using a suspension kit, or screwing directly into the desired surface.

Mounting Methods


Mounting Method #1 (Use of Suspension Kit)

Install in minutes with our included suspension kit. Simply screw the anchor into your desired surface, install the included aircraft cable and cut to your desired length. Before Installing the closed end-cap onto light fixture, slide cable-grip retaining screws into the rear channel of the aluminum housing. Insert End-Cap, and tighten cable-gripper onto light fixture. Aircraft cable can now be pulled into the cable-grip and adjusted to desired suspension height.

Mounting Method #2 (Screw into Surface)
Drill hole specific to your mounting screw diameter into aluminum housing. Counter-sink the hole so a flat-head screw can sit flush with the housing. Install LED Strip over screw.


Cutting

To cut your aluminum profiles and make your lighting fixtures a custom length, simply snap the lens onto the profile, and place the channel onto a miter saw with the lens facing down. By doing this you can easily cut both the channel and lens to your desired length at the same time. We recommend using a NEW fine tooth blade to cut your aluminum channels for LED strips. The diffuser/lens is fragile and will easily break with an old blade. The easiest way to avoid breaking a lens or diffuser is to lower the saw blade slowly while cutting.


DOTLESS Lighting!

To achieve dot-free evenly diffused lighting in Aluminum Profile "P7" choose from the following DOTLESS LED strips.
12V DOTLESS White LED Strip (Most Popular!)
24V DOTLESS White LED Strip


Best Used with the Following GlowbackLED Products

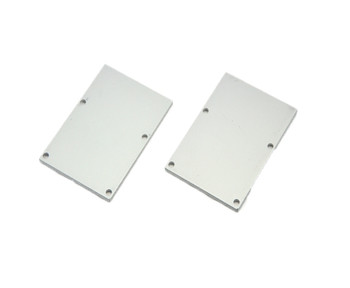

Extra Pair of Endcaps for Aluminum Profile P7

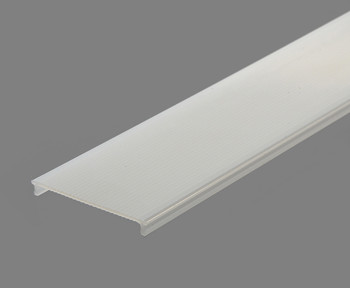

Extra Lens/Diffuser for Aluminum Profile P7

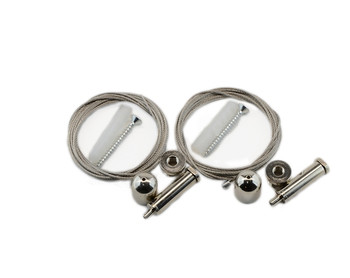

Extra Suspension Mounting Kit for Aluminum Profile P7

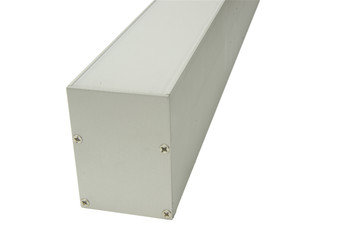

Sample of Aluminum Profile P7

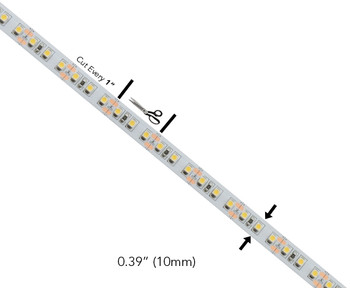

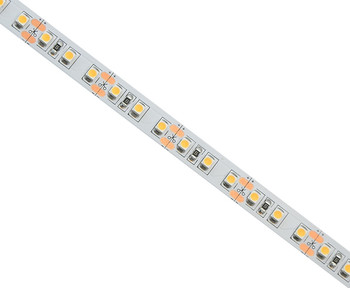

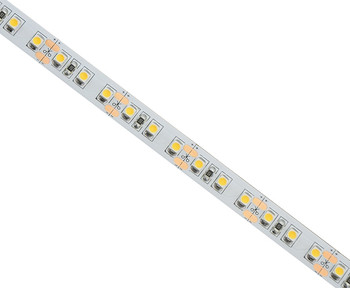

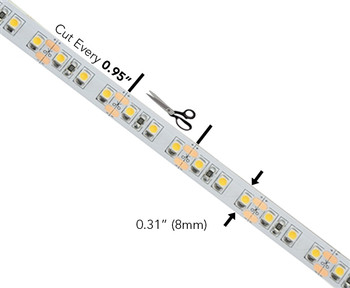

UL-Listed White LED Strips

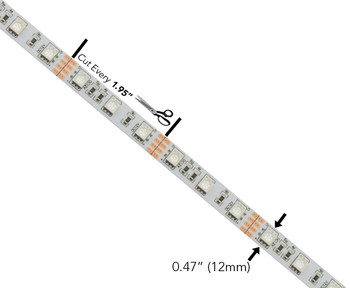

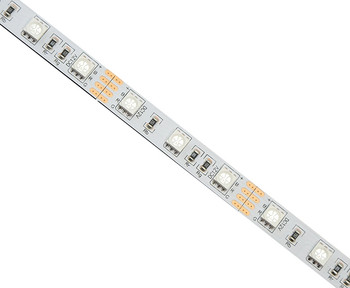

RGB Color Changing LED Strips

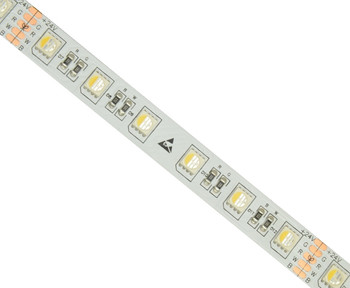

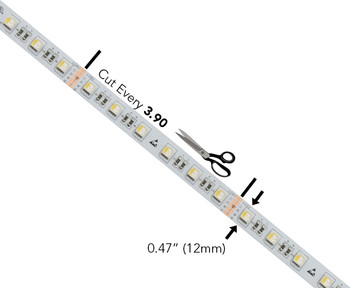

RGBW Color Changing and White LED Strips
Dimmable and Nondimmable Power Supplies
Connectors
8ft Length Suspended and Surface Mount Aluminum Profile P7
Project Support Dotless LED fixtures
Due to shipping size restrictions, 94 inches is the MAX size for free shipping. You can select full-size 8ft (96 Inch) under product options before adding them to your cart, you will be charged with a FEDEX OVERSIZE fee at checkout.
View AllClose

/Product Specs

Specifications

Make sure to review product specs before purchasing LED strip. Contact-Us for assistance with product specs, application, or installation: 1-800-679-4902 | M-F | 9AM-5PM EST | Sales@bluegateinc.com

Length 8ft (Actual Size 94", 96" available with shipping surcharge)
Width 1.96 Inch (1.82" slot width)
Height 2.76 Inch (1.56" slot height)
Lens Frosted
Max Light Output Ultra-High (10 Watts/ft)
Max Strip Width 1.56 Inch (39.6mm)
Spec Sheet:
short-desc-sec:

8ft | 1.96" W x 2.76" H

Mount Type:
Surface or Pendant (Suspended)
Suggested MAX Wattage:
10 Watts/ft
Light Output:
High Output
MAX LED Strip Width:
Over 20 mm
Profile Width:
1 - 2 Inches
Profile Height:
2 + Inches
Profile Length:
8ft
Applications:
General Lighting
Applications:
Commercial/Office Lighting
Applications:
Retail and Museum Lighting
