Aluminum Profile "S6" Stair Lighting 78" Long

SKU:
ALUMS6
Availability:
Usually Ships in 24 Hours
Project Support Dotless LED fixtures
Due to shipping size restrictions, 94 inches is the MAX size for free shipping. You can select full-size 8ft (96 Inch) under product options before adding them to your cart, you will be charged with a FEDEX OVERSIZE fee at checkout.

Volume discount rates

Below are the available volume discount rates for each individual item when you purchase a certain amount

Buy 10 - 24 and pay only $123.41 each
Buy 25 - 49 and pay only $116.91 each
Buy 50 - 99 and pay only $113.66 each
Buy 100 or above and pay only $110.42 each
$129.90

/ Description

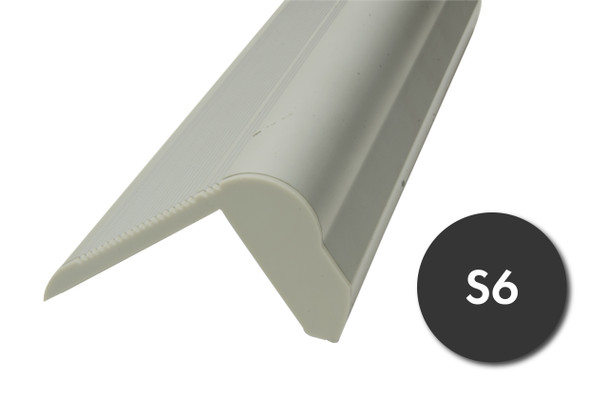

Aluminum Profile "S6" is a heavy-duty stair lighting solution. It features a large non-slip surface as well as an integrated channel for low-voltage LED strip lighting. Aluminum Profile "S6" can create a safer environment by adequately lighting stairs in retirement homes, hospitals, schools, and more. Aluminum Profile "S6" is double-anodized making it a robust option for exterior applications and stairs. It features a non-slip surface for added safety. Aluminum Profile "S6" can accommodate any LED strip up to 0.48 Inch (12mm) wide and orients light downward. It is conveniently sold in 6.5ft (78") lengths as a completed kit including one pair of end-caps and one UV-resistant frosted lens (diffuser).


Features


  • Excellent solution for retirement homes, hospitals, and more.

  • Non-slip surface for added security!

  • Even, DOTLESS stair illumination.

  • Maximize LED Lifetime through Heat Dissipation.

  • Well-Stocked and Ready to Ship from our Miami,FL facility.

Quick Specs

Length

6.5ft (Actual Size 78")

Width

3.15 Inch

Height

1.97 Inch

Lens

Frosted

Max Light Output

Medium (6 Watts/ft)

Max Strip Width

0.48 Inch (12.2mm)


Applications

Aluminum profile "S6" can be used to illuminate outdoor staircases in public parks, retirement homes, and schools. It features a non-slip surface making it a safe addition to any space. The lens and extrusion protect LED's from direct exposure to the elements. For best results, use with waterproof LED strips in outdoor environments.


Installation

Install in minutes with all purpose caulking adhesive. Simply clean your desired mounting surface, and place caulking around the edges of the channel.



Cutting

To cut your aluminum profiles and make your lighting fixtures a custom length, simply snap the lens onto the profile, and place the channel onto a miter saw with the lens facing down. By doing this you can easily cut both the channel and lens to your desired length at the same time. We recommend using a NEW fine tooth blade to cut your aluminum channels for LED strips. The diffuser/lens is fragile and will easily break with an old blade. The easiest way to avoid breaking a lens or diffuser is to lower the saw blade slowly while cutting.


DOTLESS Lighting!

To achieve dot-free evenly diffused lighting in Aluminum Profile "S6" choose from the following DOTLESS LED strips.
12V DOTLESS White LED Strip (Most Popular!)
24V DOTLESS White LED Strip


Best Used with the Following GlowbackLED Products

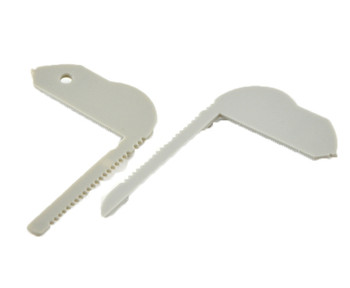

Extra Pair of Endcaps for Aluminum Profile S6
UL-Listed White LED Strips
RGB Color Changing LED Strips
RGBW Color Changing and White LED Strips
Dimmable and Nondimmable Power Supplies
Connectors
Aluminum Profile S6 Stair Lighting 78 Inch
Project Support Dotless LED fixtures
Due to shipping size restrictions, 94 inches is the MAX size for free shipping. You can select full-size 8ft (96 Inch) under product options before adding them to your cart, you will be charged with a FEDEX OVERSIZE fee at checkout.
View AllClose

/Product Specs

Specifications

Make sure to review product specs before purchasing LED strip. Contact-Us for assistance with product specs, application, or installation: 1-800-679-4902 | M-F | 9AM-5PM EST | Sales@bluegateinc.com

Length 6.5' (Actual Size 78")
Width 3.15 Inch
Height 1.97 Inch
Lens Frosted
Max Light Output Medium (6 Watts/ft)
Max Strip Width 0.48 Inch (12.2mm)
Mount Type:
Surface Mount
Suggested MAX Wattage:
6 Watts/ft
Light Output:
High Output
MAX LED Strip Width:
12mm
Profile Width:
2 -3 Inches
Profile Height:
1 - 2 Inches
Profile Length:
6.5ft (78 Inches)
Applications:
Stair Lighting
short-desc-sec:

78 inches | 3.15" W x 1.97" H
