Our

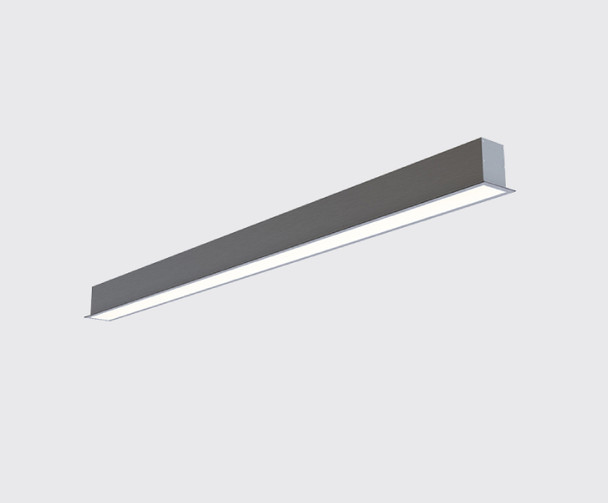

6ft LVLBY23 is a 2 Inch wide flush mount linear LED light fixture with a trim (flange) producing 605 lumens/ft making it suitable for general lighting applications. Our 6ft LVLBY23 accepts universal 120-277 or 347VAC Input Voltage allowing one to connect directly to the "line-voltage." It is available in 3000K, 4000K, or 5000K color temperatures and is dimmable to 1% (0-10V dimming). Our 6ft LVLBY23 can be recessed in dry-wall, solid, or drop ceilings using the provided mounting hardware. View Spec Sheet Here!
Features
-
Build: Anodized high-quality aluminum construction.
-
Customization: Can be customized to meet almost any desired look or design (MOQ may apply, Contact-Us).
-
Continuous Runs: Can be installed as single unit, or combined with multiple fixtures to create endless runs of linear lighting.
-
Dimming: Standard 0-10V Dimmable (Requires extra wires for dimming).
-
Lifetime: 50,000+ Hours
-
Warranty: Guaranteed by our 5-Year Warranty
-
American Made: Designed, built, and shipped out of our Miami, FL facility.
-
Quick Turnaround! Typically ships out in 7-10 days.
-
UL Listed: Can be specified on any commercial project!
Specifications
|
Length
|
6ft (68" actual)
|
|
Width
|
2" (Aperture of light)
|
|
Height
|
3"
|
|
Input Voltage
|
120-277 or 347VAC
|
|
Lumen Output
|
3,630 Lumens
|
|
Power
|
47 Watts
|
|
Color Rendering
|
80+, 90+ (Available)
|
|
Mounting
|
Recessed: Drywall, Solid, or Drop-Ceiling.
|
|
Fixture Type
|
Direct Linear Downlight
|
For full Product Specs,
View Spec Sheet Here
Colors
Our 6ft LVLBY23 light fixture is comes with a standard color rendering index value (CRI) over 80, CRI>90 is available upon request. It is conveniently available in three standard color temperatures:
3000K, 4000K, and 5000K. Custom color temperatures are available upon request (MOQ may apply Contact-Us).
Mounting Options
Our 6ft LVLBY23 can easily be recessed from any ceiling type: Drywall, Solid, or Drop-Ceiling. For Drywall, either a
twist clip or direct-screw (recommended) method can be used. Contact-Us for custom mounting configurations. View our mounting type selection guide here.
View Full Mounting and Operation Instructions Here
Contact-Us
Let our knoweledgeable sales staff assist with your Recessed Linear Lighting
Product Selection, Volume Discounts, or Customization. Contact-Us Today!
M-F | 9AM-5PM | EST
Sales@bluegateinc.com
|
Model #
|
LVLBY23-68 |
|
Manufacturer
|
GlowbackLED® |
| Dimensions |
68" long x 2" wide x 3" high
|
|
Lamp Source
|
LED
|
| Listings |
UL-Listed |
| Power Consumption | 47 Watts |
| Input Voltage | 120VAC -277VAC |
| Efficiency |
77 lumens/Watt |
|
Lumen Output
|
3,630 lumens (605 lumens/foot)
|
| Power Connection |
Rear and Endcap "Knock-Out" (electrical connections made inside) |
| Power System | Integral LED Driver |
| Light Distribution |
Direct Light Distribution |
|
Color Rendering
|
CRI > 80 | CRI> 90 Available |
|
Color Temperature
|
3000K (Warm White)
4000K (Natural White)
5000K (Bright White)
|
|
Mount Type
|
Recess Mount to Drywall, Solid, or Drop Ceiling.
Direct Screw: Screw to framing/solid ceiling using factory made holes
Twist Clip: Secure to drywall using simple Twist-Clip System. | Dimming
|
0-10V: Dim to 1% (requires control wires)
Wireless (Coming Soon) |
| Warranty |
5-Year Limited Warranty |
| Lifetime | 50,000 hours. |
|
|
|
 |
|
 |
|
