Linear LED Under Cabinet Lighting



LED Cabinet Lighting is quickly becoming a mandatory design feature in homes. LED lighting can be mounted under-cabinets, over cabinets, and inside of cabinets/drawers. LED cabinet lighting enhances the look and feel of any space. In addition to being a beautiful design feature, LED cabinet lighting acts as a visual aide, making it easier for users to perform tasks. Cooking, cleaning, and creating are all made easier with under cabinet LED lighting.

Our UL-Listed, Slim & Dotless LED Cabinet Light Bars are designed to give you perfect LED illumination for all your cabinet lighting needs. Compatible with any under-cabinet, over-cabinet, and inside cabinet installation. Our LED cabinet lighting is available in three attractive color temperatures: Warm White 3000K, Natural White 4000K, and Bright White 6000K. The advanced optics in our LED Cabinet Bar beautifully illuminate your back-splash and counter-top evenly – with NO “leakage” of light onto the floor. Install our LED cabinet lighting in minutes using our smart connector system and achieve clean, attractive installations with our clip-less mounting system. For additional lighting solutions for illuminating cabinets, view our selection of easy to mount & compact LED Puck Lights.


Product Features

  • 20 Degree Pitch: Evenly illuminates both the back-splash AND counter-tops.
  • NEW, DOTLESS LIGHTING: New High Density LED's create evenly diffused, dot-free lighting.
  • ULTRA COMPACT, Only 1/2 Inch Height! Easily concealed and out of plain view.
  • Now 30% Brighter producing 260 lumens/foot.
  • Dimmable Dim using ANY standard dimmer switch when paired with one of our dimmable power supplies.
  • UL-Listed Suitable for any commercial project.
  • Unrivaled range of sizes Our LED Cabinet Bars are available in 11", 13", 15", 19", 23", 29", 36", 42", 48", 60", and 72" Sizes to meet all your under cabinet lighting needs.

Our LED Cabinet Bars are conveniently available in 11 Inch, 13 Inch, 15 Inch, 19 Inch, 23 Inch, 29 Inch, 36 Inch, 42 Inch, 48 Inch, 60 Inch, and 72 Inch Sizes. We recommend that you choose the size that matches, or smaller than your cabinet size. For longer cabinets, combine multiple LED Cabinet Bars. Our LED Cabinet Bars are easily installed using the integrated mounting track. Simply screw the LED Cabinet Bar into place using #6 wood screws (included). LED Cabinet Bars come with 8ft of wire and a connector, and are fully plug-and-play compatible when paired with one of our pre-configured dimmable power supplies.




click here
for more information:

Product Selection Guide
Power Supply Selection Guide
Scroll down below products to see our inspiration gallery
Sort By:
Page of 1



Inspirations



Show Above:

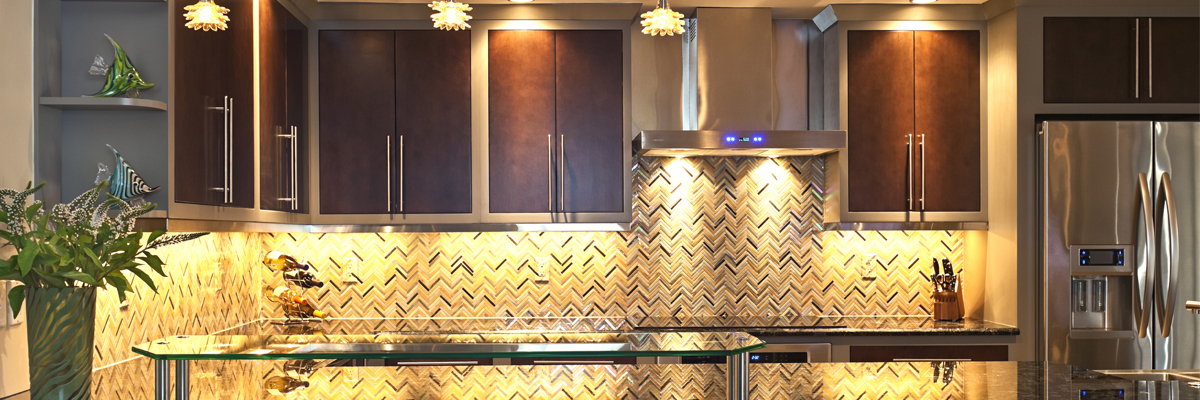

(5) 29" LED Cabinet Bars used for under-cabinet lighting, (2) LED Cabinet Puck Lights. 3000K Warm White. 24V 60W Phase Dimmable Driver enclosed in cabinet with (2) 3-Way power distributors used.

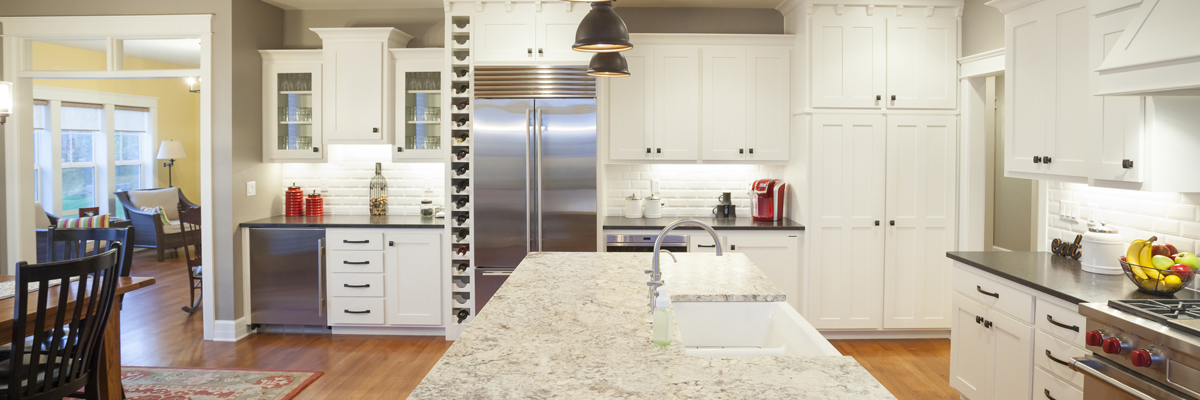

Shown Above (from left to right): (3) 15" Linear LED Cabinet Bars, (1) 42" Linear LED Cabinet Bars, (1) 29" Linear LED Cabinet Bar, and (1) 15" LED Cabinet Bar. 4500K Natural White. Powered Using (1) 24V 60W Phase Dimmable LED Driver enclosed in cabinet with 6-Way Smart Connectors hardwired into driver.

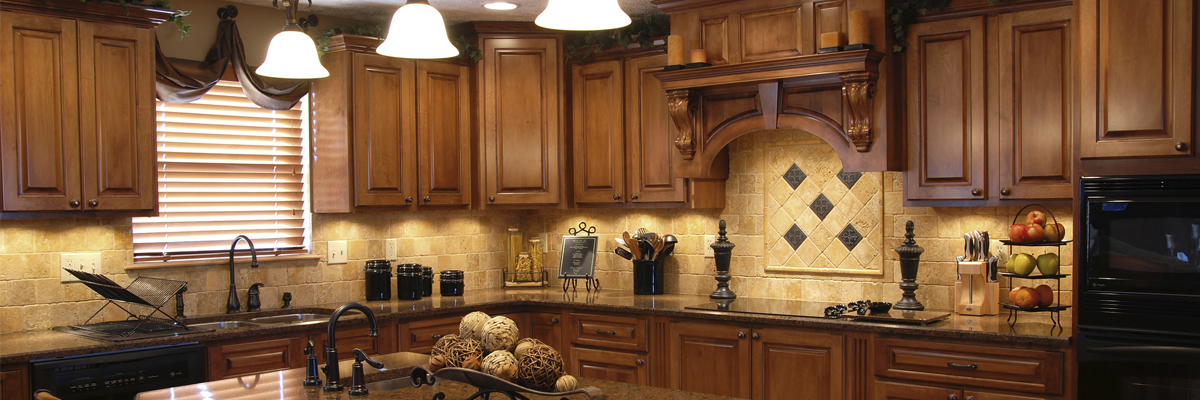

Shown Above: LED Cabinet Puck Lighting centered underneath every cabinet door (approx. every 12"). 3000K Warm White. LED lights connected to (2) 24V 30W Power Adapter with 6-Outputs for LED Cabinet Bars. Adapters plug into switched (non-dimming) outlet inside cabinet.
