Color Changing and White RGBW LED Strips require a 12VDC or 24VDC Power Supply, Receivers, and Controllers. Use the overview below to help you select the right products to get your RGBW LED Strip Lighting System working.
Power Supplies
RGBW LED Strips require a 12VDC or 24VDC Power Supply. Refer to product specs for power consumption of RGBW LED Strips. We recommend you use on of our Mean Well Class-2 electronic LED Drivers.
Note: LED Drivers are available in higher wattages, however we strongly discourage use of LED drivers outside of Class-2 limits.
Controller and Receiver Pairing Guide
RGBW LED Strips require a controller for operations. Controllers work with receivers to control your RGBW LED Strip lighting. A Controller can be an RF remote, your smartphone or tablet, a programmable DMX touch-panel, or even integration into a home automation system. Use the guide below to determine your desired Controller and Receiver pairing:
Device
|
Controller
|
Receiver
|

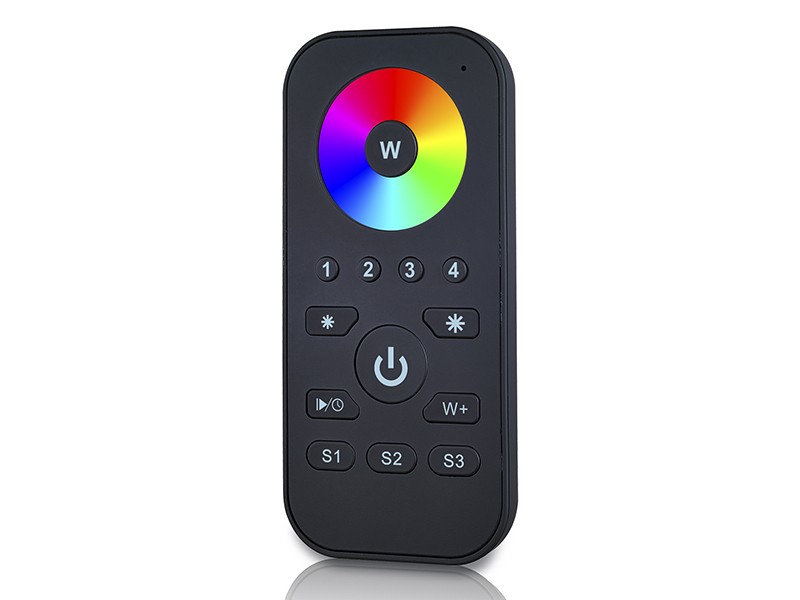

RF Remote click on the images to be directed to the product page
|
.jpg)
|
|

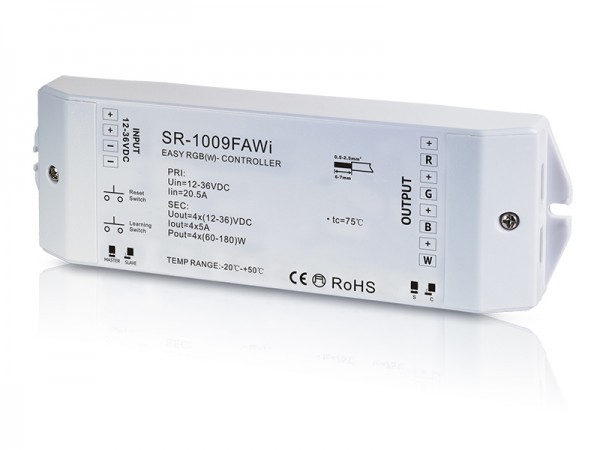

Wi-Fi click on the images to be directed to the product page
|
Smart Phone
|
|

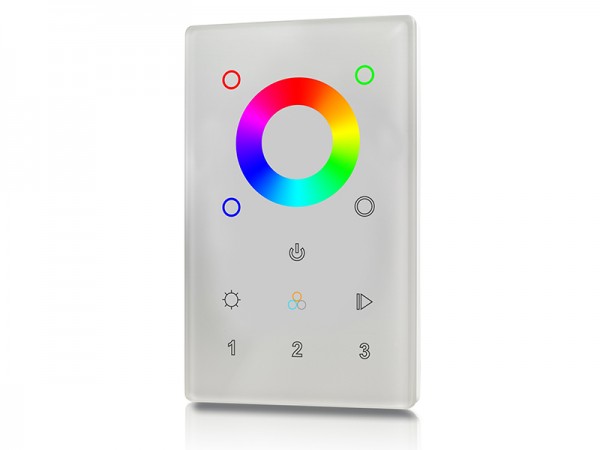

Touch-Panel click on the images to be directed to the product page
|
|
|

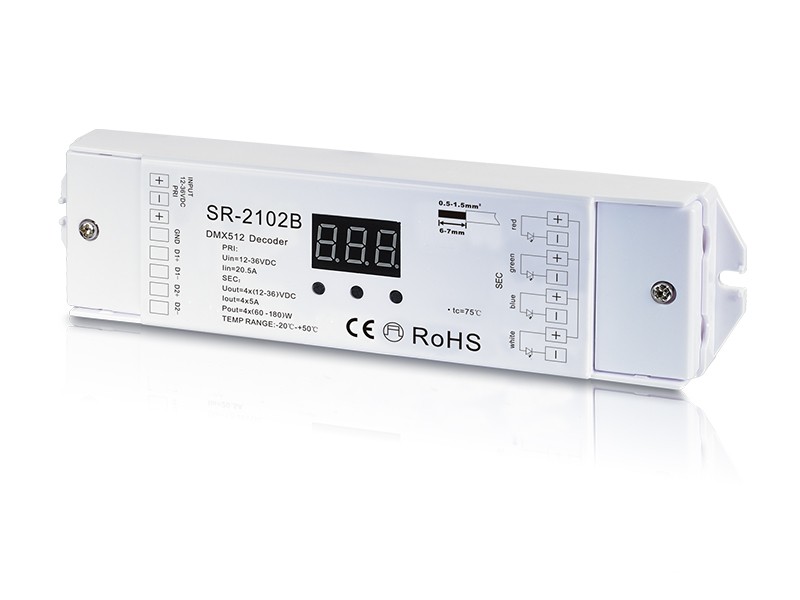

Programmable Touch Panel click on the images to be directed to the product page
|
|
|
Note: every receiver needs its own Class-2 Power-Supply. Multiple receivers can be used with the same controller. If you want all lights to perform the same function, use a power-repeater or amplifier for each additional strip. Each power repeater requires its own Class- 2 Power Supply as well.
Example Set Up
A basic setup of one 12VDC RGBW LED Strip operated through an RF remote requires the following components at the minimum.

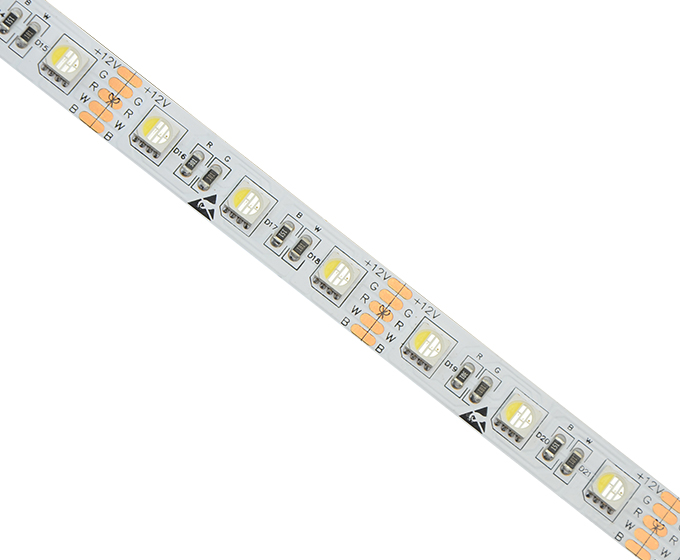

12VDC RGBW LED Strip
|
60W Class-2 Driver
|

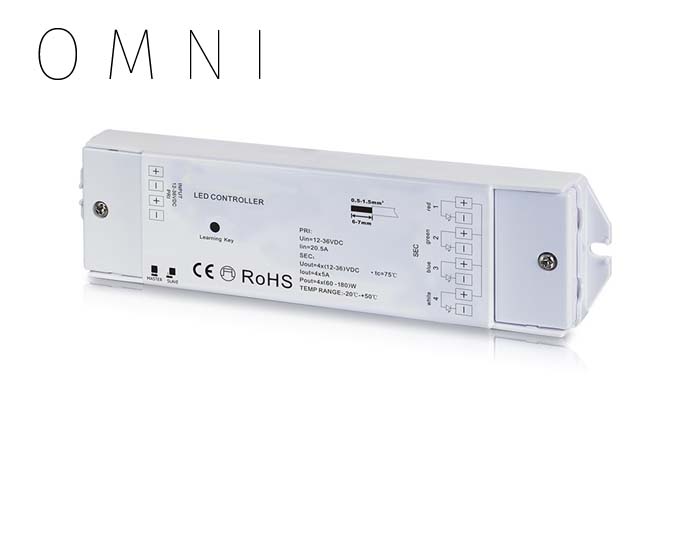

O M N I RF Receiver
|

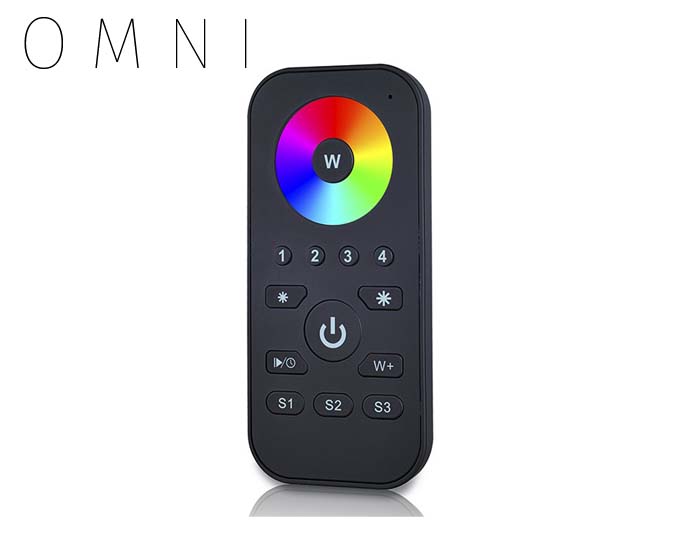

O M N I RF Remote
|
|
|
|
|
Too Complicated? Let us take-over and deliver you a fully configured system. We offer the following services for RGBW LED Strip lighting and RGBW LED Controllers
RGBW LED Fixtures manufactured to your specs RGBW LED Strips cut to size with leads soldered on Configured Power Supply and Receiver System: Plug-and-play Pre-programmed receivers and controllers Custom, Turn-Key Controlling Solutions Integration into Home Automation system support
Contact-Us Today. A dedicated project manger will help you get your configured, head-ache free RGBW LED system delivered FAST!
