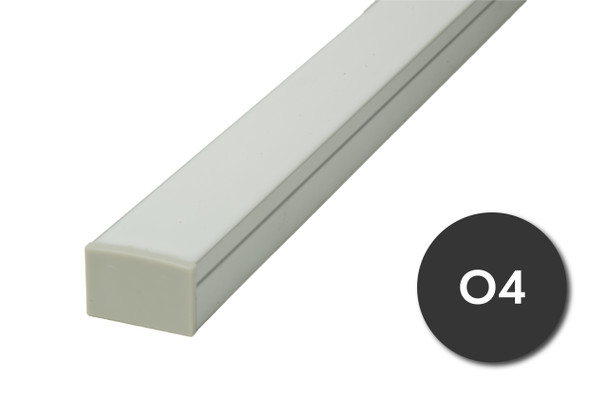

Aluminum Profile "O4" 78in High Output

SKU:
ALUMO4
Availability:
Usually Ships in 24 Hours
Project Support Dotless LED fixtures
Due to shipping size restrictions, 94 inches is the MAX size for free shipping. You can select full-size 8ft (96 Inch) under product options before adding them to your cart, you will be charged with a FEDEX OVERSIZE fee at checkout.

Volume discount rates

Below are the available volume discount rates for each individual item when you purchase a certain amount

Buy 10 - 24 and pay only $46.46 each
Buy 25 - 49 and pay only $44.01 each
Buy 50 - 99 and pay only $42.79 each
Buy 100 or above and pay only $41.57 each
$48.90

/ Description

For simple yet modern architectural designs where high-output, surface mounted lighting is desired, Aluminum Profile "O4" is a perfect solution. Although compact, aluminum channel "O4" can accommodate high-output LED strips up to 0.80 Inch (20.3mm) wide, and properly dissipate heat from the strips as well as protect them from the elements, allowing them to perform to their fullest life capacity. Aluminum extrusion “O4” is conveniently sold in 6.5ft lengths as a completed kit including a pair of end-caps, mounting clips, and one clear or frosted lens. View Spec Sheet Here!


Features


  • Maximizes Lifetime of LED strips by dissipating heat.

  • Protect strips from elements with modern design

  • Fast and Easy Installation using snap in place clips!

  • Well-Stocked and Ready to Ship from our Miami, FL facility.

Quick Specs

Length

6.5ft (Actual Size 78")

Width

0.92 Inch

Height

0.62 Inch

Lens

Clear or Frosted

Max Light Output

High (6 Watts/ft)

Max Strip Width

0.80 Inch (20.3mm)


Applications

Aluminum channel "O4" is a compact, low-profile aluminum profile with the capacity to hold high-output LED lighting. Use for task-lighting, shelf-lighting, shop-lighting, and more. Although intended primarily for indoor use, aluminum profile "O4" protects LED strips from the elements, making them suitable for outdoor applications giving one maximum versatility when using their high-output LED tape. For maximum waterproofing, use with waterproof, outdoor rated LED strips.


Installation

Install in minutes with easy snap-and-go clips. Aluminum housing "O4" comes with (3) mounting clips. Simply install clips onto your desired surface with screws and quickly snap your LED aluminum housing into place.


Cutting

To cut your aluminum profiles and make your lighting fixtures a custom length, simply snap the lens onto the profile, and place the channel onto a miter saw with the lens facing down. By doing this you can easily cut both the channel and lens to your desired length at the same time. We recommend using a NEW fine tooth blade to cut your aluminum channels for LED strips. The diffuser/lens is fragile and will easily break with an old blade. The easiest way to avoid breaking a lens or diffuser is to lower the saw blade slowly while cutting.


DOTLESS Lighting!

To achieve dot-free evenly diffused lighting in Aluminum Profile "O4" choose from the following DOTLESS LED strips.
12V DOTLESS White LED Strip (Most Popular!)
24V DOTLESS White LED Strip


Best Used with the Following GlowbackLED Products


Extra Pair of Endcaps for Aluminum Profile O4
Extra Lens/Diffuser for Aluminum Profile O4
Extra Mounting Clips for Aluminum Profile O4
Sample of Aluminum Profile O4
UL-Listed White LED Strips
RGB Color Changing LED Strips
RGBW Color Changing and White LED Strips
Dimmable and Nondimmable Power Supplies
Connectors
6.5ft Length Surface Mount Aluminum Profile O4
Project Support Dotless LED fixtures
Due to shipping size restrictions, 94 inches is the MAX size for free shipping. You can select full-size 8ft (96 Inch) under product options before adding them to your cart, you will be charged with a FEDEX OVERSIZE fee at checkout.
View AllClose

/Product Specs

Specifications

Make sure to review product specs before purchasing LED strip. Contact-Us for assistance with product specs, application, or installation: 1-800-679-4902 | M-F | 9AM-5PM EST | Sales@bluegateinc.com

Length 6.5ft (Actual Size 78")
Width 0.92 Inch
Height 0.62 Inch
Lens Clear or Frosted
Max Light Output High (6 Watts/ft)
Max Strip Width 0.80 Inch (20.3mm)
Spec Sheet:
short-desc-sec:

78 inches | 0.92" W x 0.62" H

Mount Type:
Surface Mount
Suggested MAX Wattage:
6 Watts/ft
Light Output:
High Output
MAX LED Strip Width:
20mm
Profile Width:
0.75 - 1 Inch
Profile Height:
0.40 - 0.75 Inch
Profile Length:
8ft
Applications:
Cabinet Lighting
Applications:
Commercial/Office Lighting
Applications:
Task Lighting
