Aluminum Profile "V2" 94in High-Output Capable
LED Aluminum Profile V2 for surface mounted high output linear LED strip lighting. Use LED Aluminum Channel V2 with high output super bright commercial LED strips and tape light.

Alternative Views:


Project Support

Dotless LED fixtures

Due to new shipping size restrictions, 94" is the MAX size for free shipping. 96" housings are available upon request with a shipping surcharge. Contact-Us Today for more information
Our Price: $92.90
Free shipping on orders over $200

Availability:: Usually Ships in 24 Hours
Product Code: ALUMV2-96


Lens (Diffuser) Type*:


Qty:
Description Product Specs

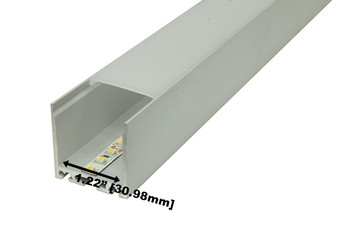

Aluminum Profile "V2" is a 1" wide extrusion suitable for housing high-output LED strips. It can be surface mounted as well as suspended from the ceiling using suspension kits. Its narrow and sleek design make it an excellent solution for general lighting in homes, offices, or commercial spaces. Aluminum Profile "V2" can accommodate any LED strip (or two rows of LED strip) up to 1.00" (25.4mm) wide (interior dimension). This extrusion protects your strip lighting from the elements as well as maximizes their longevity by dissipating excess heat. Pair with our high-density DOTLESS LED strips for evenly diffused, dot-free lighting. Aluminum Profile "V2" is conveniently sold in 8ft lengths and comes as a completed kit including one pair of end caps, a suspension mounting kit, and a UV-resistant frosted lens (diffuser). View Spec Sheet Here!

    Features

  • Attractive 1" wide linear lighting.
  • Can be suspended or surface mounted to your project needs.
  • Maximizes Lifetime of LED strips by dissipating heat.
  • Slim and compact design suitable for use with high-output LED strips.
  • Fast and Easy Installation using suspension kit
  • Protect strips from the elements
  • Well-Stocked and Ready to Ship from our Miami, FL facility.

Specifications

Length 8' (Actual Size 94", 96" available with shipping surcharge)
Width 1.38"
Height 1.39"
Lens Frosted
Max Light Output High (10 Watts/ft)
Max Strip Width 1.00" (25.4mm)


Applications:
Aluminum Profile "V2" is one of our most versatile offerings, it can be surface or suspended mounted. Suspended in homes and offices, it creates a clean and modern aesthetic. It can also be used in offices or retail spaces to create narrow lines of modern LED lighting.

Installation:
With aluminum profile "V2", one has the option of using a suspension kit, or screwing directly into the desired surface.

Mounting Method #1 (Use of Suspension Kit)

Install in minutes with our included suspension kit. Simply screw the anchor into your desired surface, install the included aircraft cable and cut to your desired length. Before Installing the closed end-cap onto light fixture, slide cable-grip retaining screws into the rear channel of the aluminum housing. Insert End-Cap, and tighten cable-gripper onto light fixture. Aircraft cable can now be pulled into the cable-grip and adjusted to desired suspension height.

Surface Mounting Method (Direct-Screw)
Drill hole specific to your mounting screw diameter into aluminum housing. Counter-sink the hole so a flat-head screw can sit flush with the housing. Install LED Strip over screw.

Cutting:
To cut your aluminum profiles and make your lighting fixtures a custom length, simply snap the lens onto the profile, and place the channel onto a miter saw with the lens facing down. By doing this you can easily cut both the channel and lens to your desired length at the same time.

DOTLESS Lighting!

To achieve dot-free evenly diffused lighting in Aluminum Profile "V2" choose from the following DOTLESS LED strips.
12V DOTLESS White LED Strip (Most Popular!)
24V DOTLESS White LED Strip
High Output 24V DOTLESS LED Strip

Need More Information?


Let our knowledgeable sales staff assist with your LED Strip Selection


Sales@bluegateinc.com
1-800-679-4902
9AM-5PM | M-F | EST
Use this Product with the Following

Your full service source of LED components. We have top-quality products to build your bespoke linear LED lighting solution. Don't compromise on quality! Use our commercial grade components.

Click on the following links:

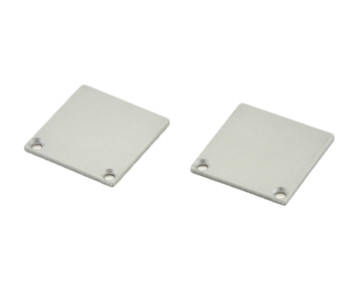

Extra Pair of Endcaps for Aluminum Profile V2

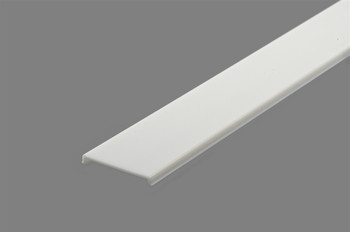

Extra Lens/Diffuser for Aluminum Profile V2
