O M N I RF Wireless Glass Touch Panel Controller for LED Strips | Color and Color Temperature Adjustment
Glass Touch Panel for adjusting Color Temperature (CCT) and Color-Tone (RGB), operates using DMX. To be used for home automation and lighting applications.

Alternative Views:


Our Price: $104.90
Free shipping on orders over $200

Availability:: Usually Ships in 24 Hours
Product Code: BG2830-CUS(W)
Qty:

Description


For those looking to control their Color Changing RGB/RGB+W or Tunable White LED Lights from an attractive and high-end full touch integrated switch, our BG2830C Touch RGB/CCT Controller is a perfect solution. Featuring an ultra-sensitive backlit touch display on high end durable glass, this attractive and modern controller allows one to control Up to 4 Zones of Color Changing RGB/RGB+W or Tunable White LED lights when paired with one of our OMNI RF Receivers. Easily control color and brightness (dimming) of each zone independently or in unison. Save up to three custom scenes and choose from several different color chasing dynamic modes. Our 4-Zone OMNI RF RGB/CCT Controller must be used with a compatible OMNI RF receiver (Indoor Rated OMNI RF Receiver, Outdoor Rated OMNI RF Receiver, or Power-Supply and OMNI RF-Receiver-in-One).

    Features

  • Simple Pairing Easily Pair with compatible OMNI RF Receivers, by simple click of the "learn" key.

  • Attractive color lines for precise and accurate Color selection.

  • High-Quality backlit glass touch display

  • Zone Control Control up to 4 zones independently (or together)

  • Custom Scenes Program up to (3) Custom Scenes

  • Attractive color line for accurate color changing

  • Dimming Control Color AND Intensity of Lighting. Dim Lighting to any level!

  • UL Listed Can be specified on any commercial project!

  • Control 4 Channels Control RGB (3-Channel) OR RGB+W (4 -Channel) LED Strip Lighting

  • Built in Memory Won't un-pair or forget last setting after power outage

  • Wi-Fi Compatible Use with our Wi-Fi Hub!

Specifications

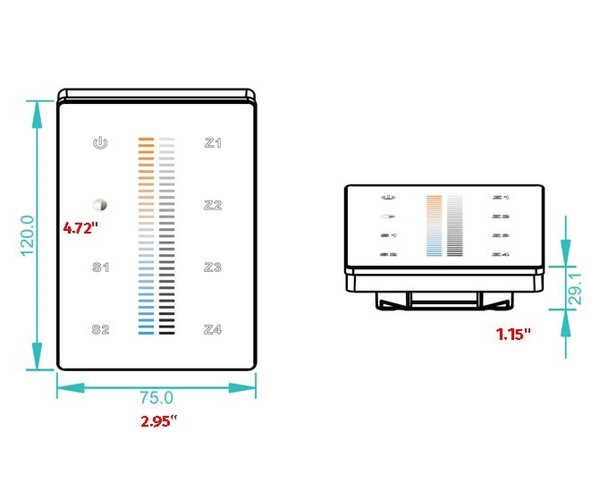

Dimensions

4.72" x 2.95" x 1.15"

Control

RF (434MHz, 869.5MHz, or 916.5MHz)

Zones

Control up to 4 Zones

Scenes

Program/Save up to 3 Scenes

Modes

10 built-in Dynamic Modes (Color Changing Patterns)

Lighting

Suitable for RGB/RGB+W or Tunable White LED Lights

Power

Powered by power supply

Environment

Indoor Use Only

Listings

FCC/CE, RoHs

Colors

Control (4) Zones of Lighting independently or in unison, and choose from hundreds of different hues of colors using the color line. To select from millions of hues, use the built in "channel mixer" to incandescently adjust the values of each color. Control Color Changing RGB/RGB+W or CCT (Tunable White) LED Lighting smoothly from this controller.


Compatible Hardware

Use our OMNI 4-Zone RF Receiver with any of the following compatible OMNI RF Receivers.
