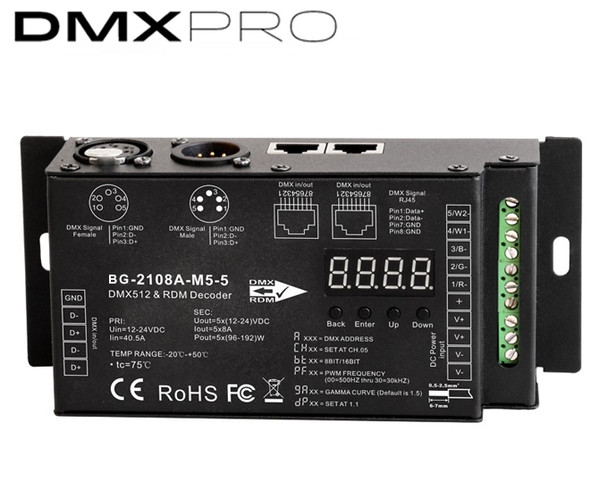

BG2108A-M5-5 Universal DMX RDM 5 channel decoder with RJ45 Connections
Turn any LED fixture into a DMX addressable light using our PRO DMX receiver/decoder for DMX Controlling system. Use with up to 8A/channel of LED lighting. Use with sophisticated controllers and home automation systems.

Project Support
Our Price: $109.90
Free shipping on orders over $200

Availability:: Usually Ships in 24 Hours
Product Code: BG2108A-M5-5
Qty:

Description Product Specs


Our new BG2108A-M5-5 DMXPRO Receiver, is an architectural grade DMX512 & RDM Decoder capable of supporting universal DMX protocols, allowing for use with an endless number of products. With integrated RDM capabilities, our DMXPRO Decoder allows bi-directional communication between an RDM compliant controller and the receiver, allowing one to re-adress the decoder using an RDM capable controller or the digital display and buttons on the face of the receiver. Through the buttons and digital display on the receiver numerous settings can be adjusted in order to achieve the best solution for the desired project, including PWM output frequency, PWM output resolution, and selecting from linear or logarithmic dimming. The integrated RJ-45 and XLR connection ports allows one to chain together numerous receivers and transmit signals to the desired controllers. This receiver is capable of handling up to 5 channels, meaning that one can assign a DMX address to any type of LED Lighting Fixtures. From standard white fixtures, to RGB or RGB+W, Tunable white, or RGB+Tunable White lights, our DMXPRO receiver offers unmatched versatility and premium quality to achieve vivid color changing lighting projects with customized controls! View Spec Sheet Here!


    Features

  • Abundance of signal input and output ports

  • Set Linear or Logarithmic Dimming

  • Optional PWM Output Resolution (8 Bit or 16 Bit)

  • GAMMA Ray Dimming Curve Values

  • 8A 5 Channels Constant Voltage Output

  • Professional Tool for Bespoke LED Lighting Control.

  • Male and Female 3/5 Pin XLR DMX512 Input and Output ports.

  • Clean RJ-45 Connection Ports

  • Digital DMX Channel Display

  • 3-Year Limited Warranty

Specifications

Length

6.5"

Width

2.9"

Height

1.5"

Input Voltage

12-24VDC

Output Current

5CH, 8A/CH

Output Power

5* (96-288W)

View Spec Sheet Here!

The DMX Advantage

DMX allows controllers to send commands to fixtures (addresses) individually over a communication line. DMX communication line is wired in series making implementation easy. Hard-wired communication line allows for reliable lighting control. Each fixture can output different light-output levels (dimming), colors, or color temperatures.

DMX is recommended for applications where many different Color Changing, Color Temperature Changing, or Dimmable LED fixtures are going to be used and controlled. DMX systems can be integrated into various home-automation systems. DMX is allows complete versatility with lighting control, the possibilities are endless using DMX Receivers.


Uses

DMX is recommended for use in larger LED lighting projects where multiple LED channels are going to be controlled. Popular applications are home theaters, stadiums, home lighting (automation systems), nightclubs, restaurants, bars, and more.

Controlling

To get the maximum versatility out of your DMX lighting system we recommend using bespoke LED controllers. Hundreds of scenes (static or changing) can be programmed and recalled from programmable touch-panels, smartphones, or keypads. At GlowbackLED™ we create bespoke LED controlling solutions. We have an onsite programmer to help create a completely tailored LED lighting control system. For more information or a quote on bespoke controlling systems Contact-Us
