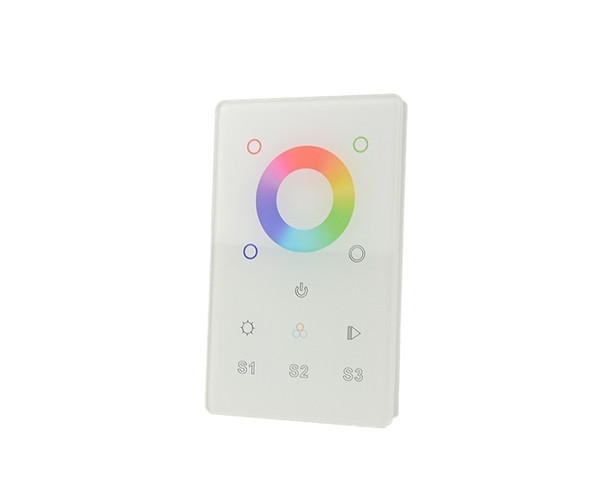

DMXPRO 1-Zone Glass Touch Panel Controller for RGBW LED Strips

SKU:
BG2811-US(W)
Availability:
Usually Ships in 24 Hours
Project Support
$118.97

/ Description

Our BG-2811 DMXPRO RGB/RGBW Controller, is an architectural grade DMX512 & RDM glass touch panel controller capable of supporting universal DMX protocols. Made with high strength glass, our glass touch panel LED controller is a high quality solution for wall mounted colored lighting controls. With ultra-sensitive glass digital color and color temperature lines, this controller allows for smooth and accurate color/color temperature selection, and precise brightness control. With up to 4 channels of control, use our touch panel controller to control a singular zone of RGB/RGBW LED Lights, without having to worry about losing any configured settings when powered off. Conveniently send DMX signal to a DMX Decoder, and send power to the controller using the easy screw-in wire terminals. Our DMXPRO touch line controller offers unmatched versatility and premium quality to achieve projects with precise customized controls. View Spec Sheet Here!


Features


  • High-Quality Glass Finish

  • Smooth Flicker-Free Dimming

  • Ultra-Sensitive Touch Line

  • 4 Channels Constant Voltage Output

  • Save/Program up to 2-scenes

  • Professional Tool for Bespoke LED Lighting Control

  • 3-Year Limited Warranty

Quick Specs

Dimensions

4.7" x 2.9" x 1.1"

Protocol DMX, Control with Wifi
Input Voltage 12-24VDC
Power Output 434MHz/868MHz
Display Glass Touch Panel
Controller Type DMX, Touch-Panel, Stand-Alone, Computer, Bespoke
Connection Type Screw In Terminals (V+, V- , Data+, Data-, Ground)
Dimming PWM Dimming (Set Frequency through DMX Receiver)
PWM Frequency Set to 200HZ (Default) or 1500Hz (Set on Receiver)
Channels Up to 4 Channels: Color Changing and White (RGBW)

The DMX Advantage


DMX allows controllers to send commands to fixtures (addresses) individually over a communication line. DMX communication line is wired in series making implementation easy. Hard-wired communication line allows for reliable lighting control. Each fixture can output different light-output levels (dimming), colors, or color temperatures.


DMX is recommended for applications where many different Color Changing, Color Temperature Changing, or Dimmable LED fixtures are going to be used and controlled. DMX systems can be integrated into various home-automation systems. DMX is allows complete versatility with lighting control, the possibilities are endless using DMX Receivers.


Uses


DMX is recommended for use in larger LED lighting projects where multiple LED channels are going to be controlled. Popular applications are home theaters, stadiums, home lighting (automation systems), nightclubs, restaurants, bars, and more.


Controlling


To get the maximum versatility out of your DMX lighting system we recommend using bespoke LED controllers. Hundreds of scenes (static or changing) can be programmed and recalled from programmable touch-panels, smartphones, or keypads. At GlowbackLEDâ„¢ we create bespoke LED controlling solutions. We have an onsite programmer to help create a completely tailored LED lighting control system. For more information or a quote on bespoke controlling systems Contact-Us!


Best Used with the Compatible GlowbackLED Products


Color Changing RGB LED Strips
Color Changing and White (RGBW) LED Strips
Color Temperature Changing (CCT) LED Strips
Power Supplies and Accessories
Aluminum Extrusions/Housings for LED Strips
DMXPRO Glass Touch Panel Controller for Color Temperature Changing CCT and Color Changing RGB LED Strips.
Project Support
View AllClose

/Product Specs

Specifications

Make sure to review product specs before purchasing Controller and Receivers. Contact-Us for assistance with more product specs, application, or installation: 1-800-679-4902 | M-F | 9AM-5PM EST | Sales@bluegateinc.com
