Sample of Aluminum Profile Y for LED strips
9" Sample including diffuser lens for GlowbackLED Aluminum Profile Y for LED Strip Lighting. Included Lens, diffuser. Add on LED Strips and other components

Alternative Views:


Project Support

Our Price: $10.00
Free shipping on orders over $200

Availability:: Ships same business day if ordered before 1PM EST
Product Code: ALUMYSAMPLE


Lens Type*:


Qty:
Description

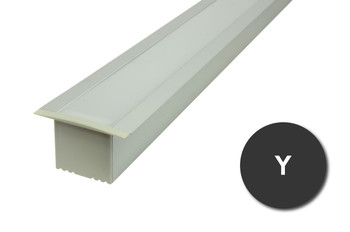

Purchase a sample of Aluminum Profile, Extrusion, Channel, Housing Y for LED Strips. Samples are ~9" long and come with frosted lens. LED Aluminum Channel Y is a high-output capable aluminum extrusion for recessed (flush mounted) LED lighting applications. Aluminum channel Y can be recessed (flush mounted) in drywall for in-wall and in-ceiling recessed linear LED lighting applications. Aluminum Channel Y is deep and allows user to build DOTLESS recessed (flush mounted) 1 inch wide linear LED fixtures.

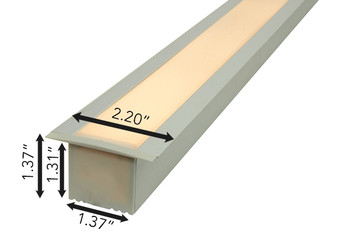

Specifications

Sample Length ~9"
Width 1.38" or (2.24" w/ flange)
Height 1.38"
Suggested MAX LED Strip Power 12 Watts/foot (~1,200 lumens/foot)
MAX LED Strip Width 1.24" (32mm)
Mount Type Surface Mounting
Material Extruded Anodized Aluminum
Lens OptionsSemi-Clear or White

Additional Support

Need a Custom Sample? Working on a Large Project?
We manufacture LED Lighting to your Specs!
1-800-679-4902
9AM-5PM | M-F | EST
or
info@bluegateinc.com

Accessories
16ft 12VDC Commercial Medium-Output CS35120 LED Strip 16ft 12VDC High CRI Designer Medium-Output CS35120 LED Strip 16ft 12VDC Vivid-Color RGB Medium-High Output CS5060 LED Strip Aluminum Profile "Y" 94in 8 ft 1" High-Output Recessed Linear LED Housing
Our Price: $71.90

Add
Our Price: $118.90

Add
Our Price: $77.90

Add
Our Price: $109.90

Add
Commercial (Architectural) Grade LED Strip. 3528 LED chips, High Density 120 LEDs/M, Indoor Grade (IP23) in a 16 foot roll. Use inside of Aluminum housings to build a professional linear LED fixture. Top-Quality LED Strips for maximum lifetime. 8mm Designer UH-CRI LED Strip 3528 120/M 16foot Roll. High CRi, R9 and R13 values for a top quality source of light Commercial (Architectural) Grade Color Changing RGB LED Strip. Med Density (60/M), High Output (3 Watts/foot), 16ft Roll, 5050 RGB Chip. Use in cove lighting, cabinet lighting, holiday lighting, hospitality lighting. LED Aluminum Extrusion Y, 1 inch wide recess, flush mounted linear LED strip lighting. Use high output super bright LED strips and tape light. Recess Aluminum LED track Y into drwyall, stone wood,
16ft 24VDC Vivid-Color and True White RGBW CS5060 Flexible LED Strip Extra Lens for Aluminum Profile Y Extra End-Cap Pair for Aluminum Profile Y for LED Strips
Our Price: $142.90

Add
Our Price: $26.90

Add
Our Price: $6.00

Add

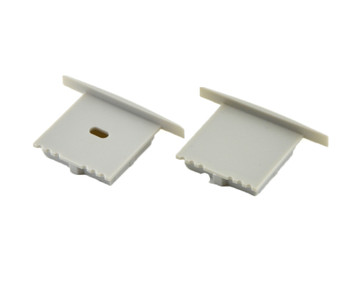

Color Changing and True White LED Strip (RGBW). For true white and color changing functionality. Extra lens for aluminum extrusion, housing, profile Y for bright LED Strip and LED Strip lighting. Available in semi-clear or white finishing. Extra pair of end caps for aluminum profile, housing, extrusion for LED Strips type Y. Includes one power-feed end-cap and one closed end-cap. Finished to match aluminum extrusion, housing finish finish.
