LVLBY 1 Inch Recess Mount Linear

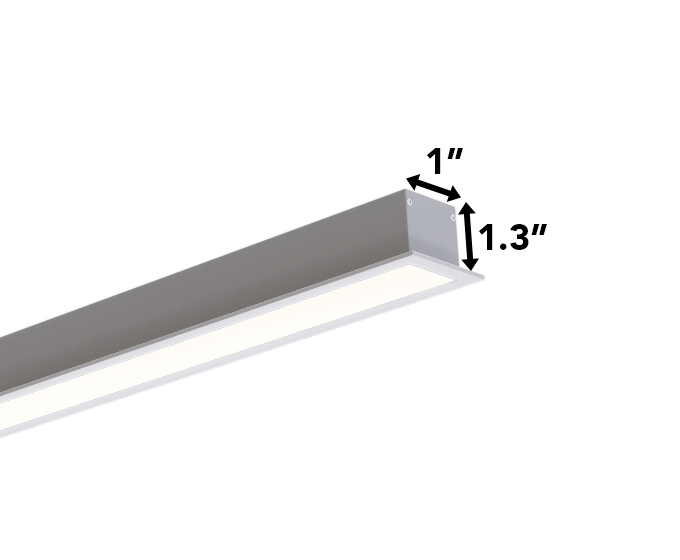

Our LVLBY is a slim and sleek, but powerful recessed linear light fixture. Delivering 500 lumens per foot, this light fixture can be used for a wide range of general lighting applications. It is a low-voltage fixture, meaning that it only requires 1.3" of clearance (vs the 3 inches needed for fixtures with internal power supplies). It is also sold in custom sizes ranging from 1-8ft. Our LVLBYcan be customized to meet your needs (Contact-Us for Custom Configurations: RGB, RGBW, Tunable White, Custom Shapes).

Features

  • 12 or 24VDC Input
  • Dimmable
  • 90+ CRI Standard, 95+ available
  • 500 lumens/ft
  • High Quality Look and Build
  • Custom Sizes for High End Look
  • UL-Listed

Shop by Size

up to 2ft LVLBY Fixture
 2-3ft LVLBY Fixture
 3-4ft LVLBY Fixture
 4-5ft LVLBY Fixture
 5-6ft LVLBY Fixture
 6-7ft LVLBY Fixture
 7-8ft LVLBY Fixture

Downloads

Spec Sheet Coming!
Mounting Instructions

Customization

Color Temperature: 3000K, 4000K, 5000K (Custom options available)
Finish: Brushed Aluminum

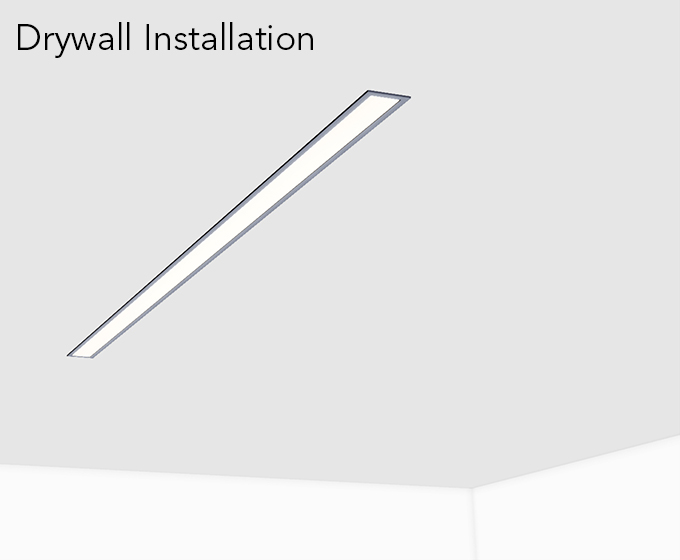

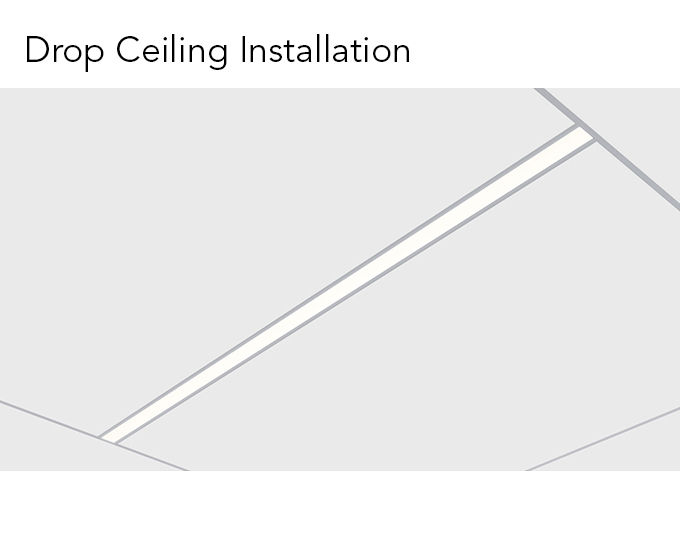

Mounting: Direct-Screw, Twist-Clip, or Drop-Ceiling
Individual or Continuous, seam-less runs

Product Support and Selection

Contact Us today for assistance making your product selection, for volume pricing inquiries, and project specification help!

1-800-679-4902

M-F | 9AM-5PM |EST
Sales@bluegateinc.com

Sort By:
Page of 1
Cut-to-Size, Built-to-Size Recessed High Output Linear LED Bar up to 24". Produces up to 500 lumens/foot. Easily link light fixtures together for long continuous runs. 1" Wide High Output Recessed Linear LED Bar up to 24"

Any Size up to 24"
12 Watts
1,000 Lumens

Our Price: $134.90
Cut-to-Size, Built-to-Size Recessed High Output Linear LED Bar 24"-36". Produces up to 500 lumens/foot. Easily link light fixtures together for long continuous runs. 1" Wide High Output Recessed Linear LED Bar 24"-36"

Any Size 24"-36"
18 Watts
1,500 Lumens

Our Price: $160.90
Cut-to-Size, Built-to-Size Recessed High Output Linear LED Bar 36"-48". Produces up to 500 lumens/foot. Easily link light fixtures together for long continuous runs. 1" Wide High Output Recessed Linear LED Bar 36"-48"

Any Size 36"-48"
24 Watts
2,000 Lumens

Our Price: $190.90
Cut-to-Size, Built-to-Size Recessed High Output Linear LED Bar 48"-60". Produces up to 500 lumens/foot. Easily link light fixtures together for long continuous runs. 1" Wide High Output Recessed Linear LED Bar 48"-60"

Any Size 48"- 60"
30 Watts
2,500 Lumens

Our Price: $232.00

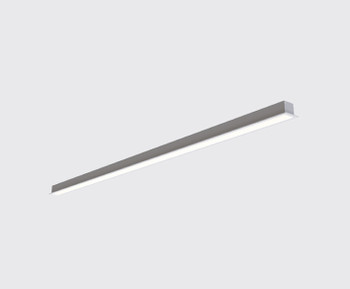

Cut-to-Size, Built-to-Size Recessed High Output Linear LED Bar 60"-72". Produces up to 500 lumens/foot. Easily link light fixtures together for long continuous runs. 1" Wide High Output Recessed Linear LED Bar 60"-72"

Any Size 60"- 72"
36 Watts
3,000 Lumens

Our Price: $252.90

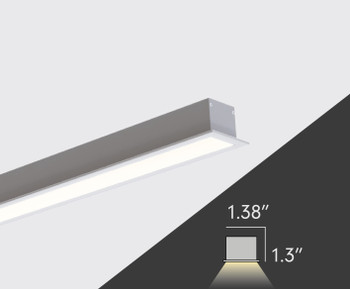

Cut-to-Size, Built-to-Size Recessed High Output Linear LED Bar 72"-84". Produces up to 500 lumens/foot. Easily link light fixtures together for long continuous runs. 1" Wide High Output Recessed Linear LED Bar 72"-84"

Any Size 72"- 84"
42 Watts
3,500 Lumens

Our Price: $262.90
Cut-to-Size, Built-to-Size Recessed High Output Linear LED Bar 84"-94". Produces up to 500 lumens/foot. Easily link light fixtures together for long continuous runs. 1" Wide High Output Recessed Linear LED Bar 84"-94"

Any Size 84"- 94"
48 Watts
4,000 Lumens

Our Price: $272.90
