1" Wide Recessed Linear LED Bars

Our standard output 1" Wide recessed LED Bar is an excellent solution for recessed in drywall lighting applications. Available in any size up to 78", this 1" wide recessed light fixture can be used virtually anywhere to illuminate your space. Providing up to 400 lumens/foot, this light fixture can be used for general lighting installations. Easily recess mount with spring-activated clips.

The Housings

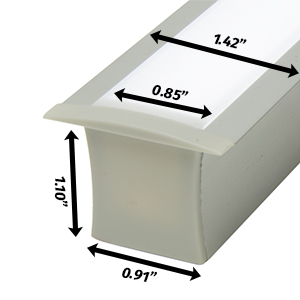

Deeper housing makes this recessed light fixture better suited for drywall, remodel installations. This light fixture requires a 1.10" clearance for flush recessing with drywall. Mill-workers can also use this recessed light fixture to add dramatic lighting effects to wall-units, display cases, and custom cabinetry.

Specs at a Glance

  • Available in a single run ANY length up to 78"
  • Low Voltage: 12VDC Standard, 24VDC available upon request
  • Light Output: 400 lumens/foot
  • Power Consumption: 5 Watts/foot (depends on size)
  • Color Options: 3000K, 4500K, 6500K, RGB, RGB+W, Tunable White
  • Power Feed: 8ft w/ connector, exits from end-cap
  • Powering: Uses remote power supply
  • Mounting Surfaces: Drywall (Most popular)
  • Warranty: 3-Year

Need Help?

Send us your lighting plans, elevations, and more! Let us help you specify the correct linear LED bar system for your project. We offer industry leading Project Support!


M-F | 9AM-5PM | EST or

1" Wide Illuminated surface recessed LED bar suitable for Medium-High Output lighting. Larger housing allows for higher output lighting up to 400 lumens/foot. Available in custom lenghts up to 78" only.
