24V 60W Dimmable Driver for up to 6 LED Light Fixtures

SKU:
MUD24V60W-6WAY
Availability:
Usually Ships in 24 Hours
Project Support
$153.90

/ Description

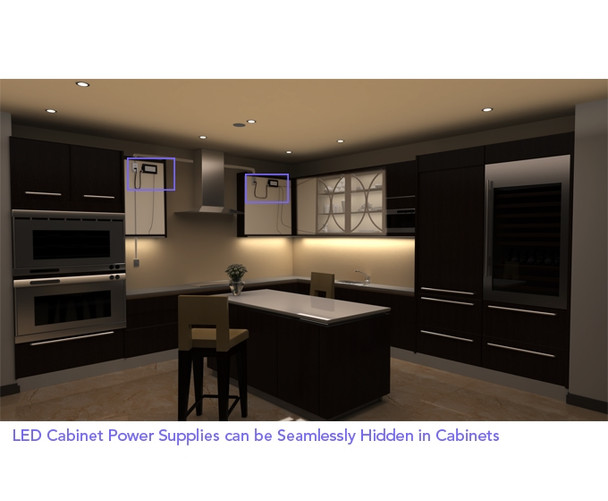

Use our pre-configured 24V Dimmable 60W Power Supply with 6 Inputs to seamlessly power up to 6 of our NEW 24V LED Cabinet Bars. By using these pre-configured power supplies with our LED Cabinet Bars, one is able to achieve a full plug-and-play installation without having to worry about making any complicated electrical connections! Our dimmable power supply can be connected to any outlet, and can be dimmed using any type of phase dimmer (most common type of dimmer available at local hardware store) or can be simply switched on and off.


Features


  • 6-Way Inputs for Plug-and-Play Installation

  • Compact and Durable Metal Housing

  • Phase Dimming (Works with any forward or reverse phase dimmer), No Additional Wires Needed!

  • Flicker-Free! Smooth Light Output with No Visible Flicker

  • Suitable for Dry or Damp Locations

  • Integrated Junction Box for Clean Connections

  • Comes with Power Cord Attached for Easy Installation!

  • Universal Voltage Input Accepts 100-277VAC

  • Guaranteed by our 5-Year Warranty

Quick Specs

Dimensions

7.4 Inch x 3.6 Inch x 1.0 Inch

Input Voltage

100-240VAC

Output Voltage

24VDC

Output Power

60W (25A)

Wiring

Hardwired Connections

Dimming

Universal Phase Dimmable (TRIAC/MLV/ELV)

Environment

Dry/Damp Location

Listings

UL-Listed, Class-2, RoHs


Power Supply Operation


LED Power Supplies convert the source or line voltage of your space to either 12 or 24V DC needed to operate your low-voltage LED strips, LED Bars, or LED Panels. Power Supplies, also known as "LED Drivers" have a rated input voltage and output wattage. We reccomend limiting your load (the sum of the wattage of all the lighting connected) to 80% of the output wattage of the Power Supply. All residences in the US have 110/120VAC line voltage circuits for lighting, but certain commercial spaces have 277VAC lighting circuits. Verify that your Power Supply is rated for 277VAC input voltage if your space requires a 277VAC compatible Power Supply. TRIPLE CHECK YOUR CONNECTIONS before powering up a power-supply, inadertently feeding high voltage to a low-voltage LED strip will cause them to fail. Certian power supplies use the European standard for wire coloring: Brown is Line/"Hot"(Black in US), Blue is Neutral (White in US), and Green/Yellow is Ground (Green in US).


Best Used with the Following GlowbackLED Products


White 2200K - 6500K LED Strips
RGB Color Changing LED Strips
RGBW Color Changing and True White LED Strips
Tunable White LED Strips
O M N I Proffesional LED Controllers
Connectors
Cables, Wire, Cable Management, Junction Boxes
24V 60W Dimmable LED Power Supply with 6-Inputs
Project Support
View AllClose

/Product Specs

Specifications

Make sure to review product specs before purchasing LED strip. Contact-Us for assistance with product specs, application, or installation: 1-800-679-4902 | M-F | 9AM-5PM EST | Sales@bluegateinc.com
