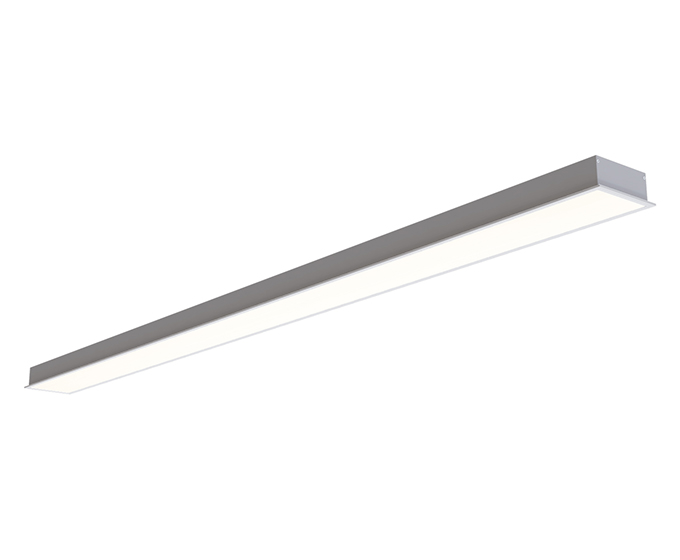

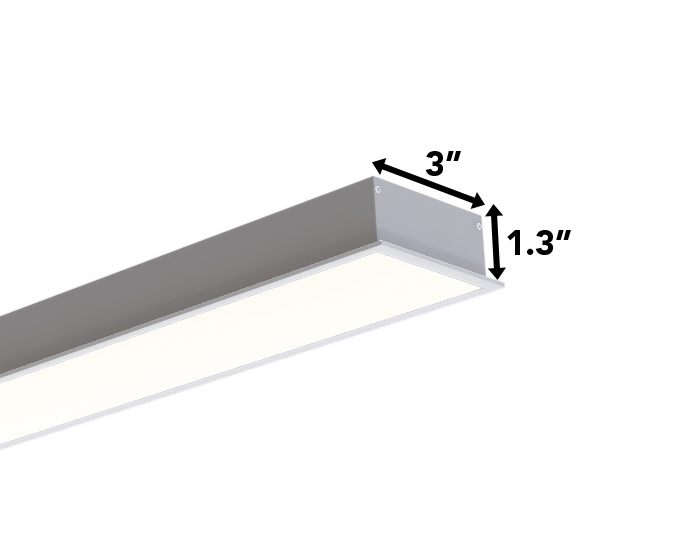

3" Wide Recessed Linear LED Lighting

Our 3" wide recessed lighting is our widest recessed light offering. Providing a dramatic 900 lumens/foot (with Ultra High Output configuration) our 3" wide recessed lighting can be used for any general lighting application. Wider design makes this light fixture better suited for larger, wide-open spaces. Linear light form makes this style highly adaptable with any design and can be used in a wide variety of residential, commercial, office, and retail spaces. Built to any size in a single run up to 94" (for free shipping qualification); easily configurable to link for long continuous runs; and available in a wide variety of color temperature and color options, these 3" wide linear recessed light fixtures offer unrivaled versatility.

Specs at a Glance

  • Available in a single run ANY length up to 94" (for free shipping qualification, 98" MAX with shipping surcharge)
  • Linkable: Simple linking system for continous runs
  • Custom Shapes: Easily make custom shapes and designs
  • Low Voltage: 24VDC (standard) 12VDC available upon request
  • Light Output: 500 lumens/foot (Standard Output), 700 lumens/foot (High Output), or 900 lumens/foot (Ultra High Output)
  • Power Consumption: 6 Watts/foot (Standard Output), 10 Watts/foot (High-Output), 12 Watts/foot (Ultra High Output)
  • Color Options: 2200K, 2700K, 3000K, 4500K, 6500K, RGB, RGB+W, Tunable White
  • Power Feed: 8ft w/ connector, exits from end-cap OR from back (16ft available)
  • Powering: powered through remote power supply
  • Dimmable: Dimmable to off using correct components
  • Warranty: 3-Year
