Aluminum Profile "C" 8 ft (94") Recessed Application

SKU:
ALUMCF-94
Availability:
Usually Ships in 24 to 48 Hours
Project Support Dotless LED fixtures
Due to shipping size restrictions, 94 inches is the MAX size for free shipping. You can select full-size 8ft (96 Inch) under product options before adding them to your cart, you will be charged with a FEDEX OVERSIZE fee at checkout.

Volume discount rates

Below are the available volume discount rates for each individual item when you purchase a certain amount

Buy 10 - 24 and pay only $26.51 each
Buy 25 - 49 and pay only $25.11 each
Buy 50 - 99 and pay only $24.41 each
Buy 100 or above and pay only $23.72 each
$27.90

/ Description

Aluminum Profile "C" is our shallowest recessed aluminum housing. Its slim and sleek design requires under 1/4 Inch of space to be recessed. Aluminum Profile "C" can be recessed under and inside cabinets to create a flush-mounted lighting look; it can be recessed in closet shelving, or in wall-units to create dazzling displays. Made of premium aluminum alloy, Aluminum Profile "C" maximizes the lifetime of your LED strips by acting as a heat-sink and drawing out the heat. Aluminum Profile "C" is designed to accommodate any LED strip up to 12mm (0.48"). Use with our 24V High Density 240/m strip in order to achieve dotless lighting. Aluminum Profile "C" is conveniently sold in 8ft lengths as a completed kit including a pair of endcaps, and one premium polycarbonate UV resistant clear or frosted lens (diffuser). View Specs Sheet Here!


Features


  • Easily recessable

  • Slim and compact design requires under 1/4 Inch of recessed depth

  • Discrete and modern design

  • Easily conceal inside or under cabinets.

  • Maximizes lifetime of LED strips by dissipating heat

  • Protects LED strips from the elements

  • Well-Stocked and ready to ship from our Miami, FL facility.

Quick Specs

Length

8ft (Actual Size 94", 96" available w/ shipping surcharge)

Width

0.69 Inch (0.96" w/ flange)

Height

0.27 Inch (0.20" Recess Depth)

Lens

Frosted

Max Light Output

Medium (4 Watts/ft)

Max Strip Width

0.48 Inch (12mm)


Applications

Slim, low-profile design and minimal recess depth needed (under 1/4") makes Aluminum Profile "C" an excellent solution for areas where there is not enough material to recess a deeper channel. Discreet lighting can be flush mounted under-cabinets, in drywall, under stair-treads, and a wide variety of applications where discrete recessed linear LED lighting is desired.


Installation

Install LED Aluminum housing "C" by first creating a groove or cavity in the desired cabinet, drywall, or shelf.

Mounting Method #1 (Use of Adhesive)

  1. Clean mounting surface (groove) of dust and residue.

  2. Apply all purpose caulking/adhesive

  3. Install assembled fixture

Mounting Method #2 (Counter-Sunk Screws)


  1. Screw Aluminum housing into cavity (counter-sink screws so LED strip has flat surface to install onto.

  2. Attach LED Strips onto Aluminum housing over counter-sunk screws


Cutting

To cut your aluminum profiles and make your lighting fixtures a custom length, simply snap the lens onto the profile, and place the channel onto a miter saw with the lens facing down. By doing this you can easily cut both the channel and lens to your desired length at the same time. We recommend using a NEW fine tooth blade to cut your aluminum channels for LED strips. The diffuser/lens is fragile and will easily break with an old blade. The easiest way to avoid breaking a lens or diffuser is to lower the saw blade slowly while cutting.


DOTLESS Lighting!

To achieve dot-free evenly diffused lighting in Aluminum Profile "C" choose from the following DOTLESS LED strips.
12V DOTLESS White LED Strip (Most Popular!)
24V DOTLESS White LED Strip


Best Used with the Following GlowbackLED Products

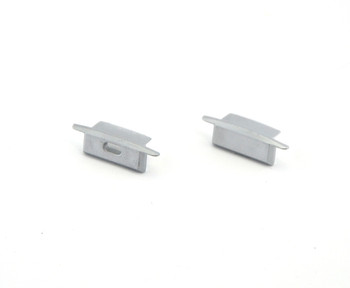

Extra Pair of Endcaps for Aluminum Profile C
Extra Lens/Diffuser for Aluminum Profile C
Sample of Aluminum Profile C
UL-Listed White LED Strips
RGB Color Changing LED Strips
RGBW Color Changing and White LED Strips
Dimmable and Nondimmable Power Supplies
Connectors
8ft Length Recess Mount Aluminum Profile C
Project Support Dotless LED fixtures
Due to shipping size restrictions, 94 inches is the MAX size for free shipping. You can select full-size 8ft (96 Inch) under product options before adding them to your cart, you will be charged with a FEDEX OVERSIZE fee at checkout.
View AllClose

/Product Specs

Specifications

Make sure to review product specs before purchasing LED strip. Contact-Us for assistance with product specs, application, or installation: 1-800-679-4902 | M-F | 9AM-5PM EST | Sales@bluegateinc.com

Length 8ft (Actual Size 94", 96" available with shipping surcharge)
Width 0.69 Inch (0.96" w/ flange)
Height 0.27 Inch (0.20" Recess Depth)
Lens Clear or Frosted
Max Light Output Medium (4 Watts/ft)
Max Strip Width 0.48 Inch (12mm)
Spec Sheet:
short-desc-sec:

8ft | 0.69" W x 0.27" H

Mount Type:
Recess w/ Flange/Trim
Suggested MAX Wattage:
4 Watts/ft
Light Output:
Medium
MAX LED Strip Width:
12mm
Profile Width:
0.5 - 0.75 Inch
Profile Height:
under 0.40 Inch
Profile Length:
8ft
Applications:
Cabinet Lighting
Applications:
Closet Lighting
Applications:
Decorative/Accent Lighting
Special Features:
Slim Low Profile Design
