16ft 12VDC Commercial Ambient-Output CS3560 LED Strip

Project Support

Volume discount rates

Below are the available volume discount rates for each individual item when you purchase a certain amount

Buy 10 - 24 and pay only $45.51 each
Buy 25 - 49 and pay only $43.11 each
Buy 50 - 99 and pay only $41.91 each
Buy 100 or above and pay only $40.72 each

/ Description

Designed specifically for high-quality linear LED lighting installations, our 12V White CS3560 LED strip allows you to create lasting and headache-free lighting installations right out of the package. Easily cut, peel, and stick the flexible light tape to your mounting surface using the durable and permanent 3M® adhesive backing. Achieve well over 50,000 hours of useful lighting when used with one of our aluminum profiles for LED strips to draw out the heat and protect the strips from damaging elements. View Spec Sheet Here!

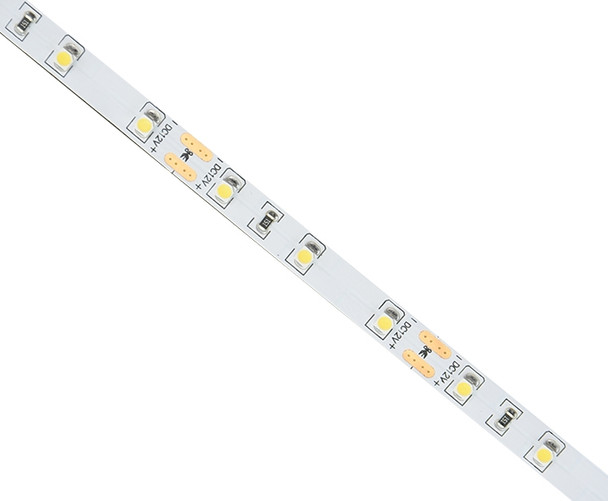

The 12V White CS3560 LED Strip comes in a 16’5” roll/reel and is 0.31” (8mm) wide. 3528 LED chips are mounted on a flexible PCB every 0.64” apart. The full LED strip spool has 600 LED packed in a medium-density—18 LED/ft (60/M)—configuration. The LED strip comes with (1) 6” 18-2 wire lead with bare, tin-coated ends, for fast and reliable wire-to-wire connections. This LED Strip produces an average of 110 lumens/foot and consumes an average of 1.25 Watts/ft (20 Watts total). Effortlessly cut this LED strip every 1.95” (or every 3 LED chips).

Our 12V White CS3560 LED Strips is well-stocked in a full range of attractive color temperatures from 3000K to 6500K (View our color temperature selection guide), offering unrivaled versatility and adaptability with any look or design. Select Color Temperature under options, by the “Add-to-Cart” button. Ambient light output (110 lumens/ft) makes this suitable for toe-kick lighting, cove lighting, and a wide range of decorative accent linear lighting applications

12V White CS3560 LED Strip Features

  • Highest Quality in LED Strip Lighting at the Best Prices!

  • High Color Rendering! CRI>90

  • Well Stocked, and Ready-to-Ship from Miami, FL

  • Medium-Density LED Strip Lighting (18/foot or 60/M)

  • Fully Dimmable with compatible driver/controller.

  • 16'5" roll, easily cuttable every 1.95"

  • Ambient Light Output (110 lumens/ft)

  • Consumes 1.25 Watts/ft at 12VDC

  • Dependable and Durable. Backed by our 3-Year Warranty

Quick Specs

Operating Voltage


Roll Length

16' 5"

Strip Width

0.31" [8mm]

Cut Increments

Every 1.95"

Power Consumption

1.25 Watts/foot (Average) see full product specs

Lumen Output

110 Lumens/ft

Color Temperatures

3000K, 4500K, 6500K

CS3560 LED Strip Operation

For optimal results and performance, our 12V White CS3560 LED Strip should be installed inside an aluminum profile for LED Strips. We strongly discourage using quick-connectors with this LED strip, soldering is the only way to get a sure-fire, head-ache free connection! Don’t know how to solder? Let us make you UL-listed LED bars with 5-Year Warranty! We’ll also solder leads onto LED strips to any size! View our LED strip instructions here

Best Used with the Following GlowbackLED Products

Aluminum Profiles, Channels, Extrusions for LED Strip Lighting
Most Popular Aluminum Channels for LED Strip Lighting
Aluminum Channels for Surface Mounted Linear LED Strip Lighting
Aluminum Channels for Recessed Mounted Linear LED Strip Lighting
Aluminum Channels for High Output Ultra Bright Linear LED Strip Lighting
Aluminum Channels for Suspended Linear LED Fixtures
Power Supplies: Dimmable, Nondimmable
Cables, Wire, Cable Management, Junction Boxes
Brightness Meter
110 lumens/foot | 1.25 Watts/foot
Project Support
View AllClose

/Product Specs

CS3560 LED Strip Specifications

Make sure to review product specs before purchasing LED strip. Contact-Us for assistance with product specs, application, or installation: 1-800-679-4902 | M-F | 9AM-5PM EST | Sales@bluegateinc.com

Product Code


Operating Voltage


Roll Length

16' 5"

Strip Width

0.31" [8mm]

Cut Increments

Every 1.95"

Power Consumption (Full Roll)

20 Watts (1.25 Watts/ft)

Power Consumption (3ft Section)

5 Watts (1.5 Watts/ft)

Light Output

110 Lumens/ft


85 Lumens/Watt

Available Color Temperatures

3000K (Warm White), 4500K (Natural White), 6500K (Bright White)

Power Feed

6" 18-2 Wire w/ Tin Coated Ends

IP Rating

Rated for Indoor Use Only

LED Chip


LED Density

18 LEDs/ft (60/M)

Color Rendering



Dimmable with any Dimmable LED Driver


50,000 Hours (Average)


3-Year Limited Warranty

110 lumens/foot | 1.25 Watts/foot
Spec Sheet:
Light Color:
White 2200 - 6000K
Light Output:
Color Rendering:
90+ CRI
Cove Lighting
Lumen Output:
< 200 Lumens/ft
80 - 90 Lumens/Watt
