LEDBARIIIT Built-to-Size up to 36" | High Output | 90° Light Spread

SKU:
LEDbarIIIT36
Availability:
Components In Stock. Built to Order, Please allow 5-10 business days
Project Support

$83.90

/ Description

LEDBARIIIT36 is a High-Output, 500 lumens/foot linear LED fixture. Built to size 25"-36". LEDBARIII36 spreads light at a 90° angle with a squared, L-shaped lens, and is an excellent linear lighting solution for showcases, displays, closets, bathrooms, and kitchens. LEDBARIII uses a double-row 3528 240/m Commercial Grade LED Strip. Our linear LED fixtures are turn-key, bespoke, linear lighting solution, therefore allow 5-10 business days for fabrication. For rush orders, or customized configurations contact-us at: 1-800-679-4902 | M-F | 9AM-5PM | EST or email us: sales@GlowbackLED.com



LEDBARIIIU36: High Output Showcase Lighting | 90° Light Spread

25"-36" Linear LED Fixture
Please ensure you enter your desired size

  • up to 1500 lumens (500 lumens/ft)
  • Squared Lens, Alternative to Quarter-Circle Rounded Lens
  • Available any size 25"-36"
  • 8ft of wire and our smart-connectors included with every bar
  • Connect multiple bars to one Power Supply
  • Dimmable
  • DOTLESS Fixture (w/ frosted Lens)
  • Commercial Grade LED's
  • High Output LED Lighting!
  • Clipless-Installation
  • Uses Smart, High-Output Connectors
  • TURN KEY Linear Lighting Solution: Built to your specs
  • High Color Rendering (>90)
  • 12 Watt - 18 Watts (1.00 A- 1.50 A)
  • 50,000+ hour lifetime
  • 3-Year Limited Warranty

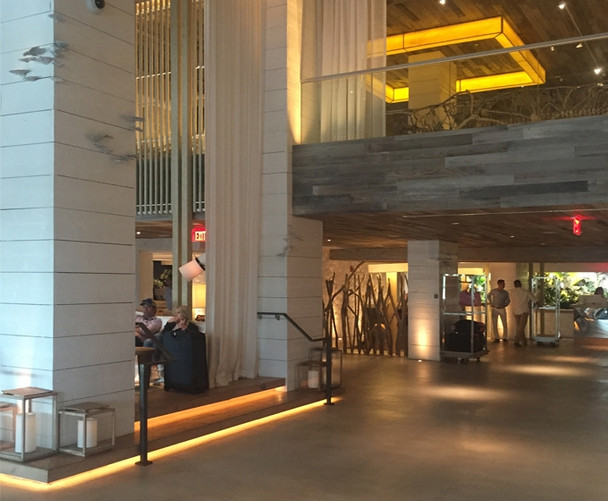

LEDBARIIIT36 is designed with showcase and display builders in mind. It is a high output (500 lumens/foot) linear LED fixture with a focused 90° degree light spread. In addition to being an excellent linear lighting solution for displays and showcases, it can be used in closets, bathrooms, kitchens, garages, museum cases, and more. Its high light output makes it an ideal linear LED task-lighting solution.


Installation
Clip-less Installation System. Install in minutes by screwing through pre-fabricated holes into mounting surface. Achieves a clean and trimless installation look.

Connections:
Use of Smart, High-Output Connectors and Cable-Distribution systems. Connect multiple LED bars to one Power Supply using the following guide.

GlowbackLED™ Commercial Grade Linear LED Fixture/Bar Advantage
  1. Quality: Commercial Grade Linear LED Fixtures are built to order with top-quality, commercial grade components. Our linear LED bars are built by professionals for professionals for quality linear LED lighting solutions.
  2. Dependability: Commercial Grade linear LED fixtures are built with top-quality, lasting components. Our line of LEDBAR's are designed to last 50,000 until they've dimmed to 70% of their original brightness.
  3. Color Rendering: High Color Rendering (>90) means your space and objects show their true vivid colors. Inexpensive LED alternatives will dull the appearance of objects they illuminate.
  4. Efficiency: Our Commercial Grade Linear LED strips boast industry leading efficiency. Delivering 85 lumens/Watt
  5. Safety: Our Commercial Grade linear LED fixtures are built with tested high quality components for optimal thermal control and electrical over-stress protection. All Commercial Grade Linear LED fixtures/bars are Class-2 compliant.
  6. Turn-Key Solution: GlowbackLED™ specializes in customized lighting solutions. We have the biggest selection of commercial, architectural, and specification grade LED strips on the market. We manufacture lighting products to your specs, for a bespoke LED lighting solution Contact-Us: sales@glowbackLED.com or 1-800-679-4902 | M-F | 9AM-5PM EST
500 lumens/foot
LED bar up to 25"-36"
Built-To-Order
Project Support

View AllClose

/Product Specs

Model #LEDBARIIIXX (25"-36")
ManufacturerGlowbackLED™
Lamp SourceLED
LED TypeCommercial Grade 3528 240/M
Input Voltage12VDC
Power Output12 Watt (1.00 A) - 18 Watts (1.50 A)
Lumen Output500 lumens/foot (Clear Lens)
Efficiency85 lumens/watt
Color RenderingCRI > 90
Color Temperature3000K (Warm)
4500K (Natural White)
6500K (Bright White)
Mount TypeClipLess Installation, Use-Pre Fabricarted holes (#6 screw)
Connection TypeSmart High-Output Connectors. See Guide Connect Multiple Bars to one Power Source
Dimming
components required
TRIAC (Phase-Dimmable)
0-10V
DALI
DMX
Warranty3-Year Limited Warranty
50,000+ LED Lifetime
ReturnsNo Returns or Exchanges on Built-to-Size Linear LED Fixtures
><span><inline><b style:
font-size: 18px
>500 lumens/foot</b><br /><inline style:
font-size: 14px
>LED bar up to 25-36"<br /></span><b><i><span style:
"font-size: 14px
View AllClose

/Applications

Slim-Low Profile Surface Mounted Linear LED Fixture


  • High-Output Under Cabinet Linear LED Lighting
  • High Output Super Bright LED Over Cabinet Lighting
  • High Output Super Bright Linear LED Strip Lighting
  • High Output Linear LED Fixtures for Garages and Task LED Lighting
  • High Output Linear Task LED lighting
  • Super Bright LED Kitchen Cabinet Lighting
  • Super Bright Linear LED closet Lighting
  • Ultra-Bright Linear LED Museum Lighting
  • Architectural Grade High-Output Linear LED Fixture
  • Ultra Bright, high Color Rendering Showcase Lighting
  • Super Bright Showcase Linear LED lighting
  • Ultra bright Jewelry Retail Linear LED Lighting
  • High Output Linear LED Lighting for Garages
  • High Output Workshop and Shop Linear LED lighting
  • LED Task Lighting Ultra Bright
  • Super Bright Restaurant Task Lighting
  • Linear LED task lighting for Hotels and Hospitality Installations
  • High Output Super Bright Bathroom Lighting
