Aluminum Profile "N" 78in Recessed Application

SKU:
ALUMN6
Availability:
Usually Ships in 24 Hours
Project Support Dotless LED fixtures
Due to shipping size restrictions, 94 inches is the MAX size for free shipping. You can select full-size 8ft (96 Inch) under product options before adding them to your cart, you will be charged with a FEDEX OVERSIZE fee at checkout.

Volume discount rates

Below are the available volume discount rates for each individual item when you purchase a certain amount

Buy 10 - 24 and pay only $45.51 each
Buy 25 - 49 and pay only $43.11 each
Buy 50 - 99 and pay only $41.91 each
Buy 100 or above and pay only $40.72 each
$47.90

/ Description

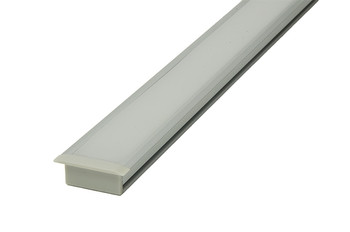

Aluminum Profile "N" is designed for interior floor recessed lighting. It features a heavy-duty, UV resistant poly-carbonate lens that can be stepped on or even driven over. It has a slim and low-profile design allowing it to be compatible with most floor types. The heavy duty aluminum extruded channel maximizes the lifetime of your LEDs by extracting excess heat. Aluminum Profile "N" can accommodate any waterproof or non-waterproof LED strip up to 11.9mm (0.47"). Aluminum Profile "N" is sold in 6.5ft (78") sections as a completed kit including one pair of end-caps and one heavy-duty frosted poly-carbonate lens/diffuser. View Spec Sheet Here!


Features


  • Recess Lighting in Floors.

  • Extra Heavy Poly Carbonate Lens can be stepped on or driven over.

  • Heavy Aluminum Extruded Channel for maximum load capacity.

  • Maximize the lifetime of any LED through advanced heat extraction.

  • Well-Stocked and Ready to Ship from our Miami, FL facility.

Quick Specs

Length

6.5ft (Actual Size 78")

Width

0.85 Inch (1.09" w/ flange)

Height

0.37 Inch (0.44" w/ flange)

Lens

Frosted

Max Light Output

Medium (4 Watts/ft)

Max Strip Width

0.48 Inch (12mm)


Applications

Aluminum Profile "N" can be used to recess lighting in floors. It can be used in indoor OR outdoor environments to create beautiful recessed linear lighting in the ground. Use waterproof LEDs wherever you will be recessing lighting in the floor. For best results seal fixture with silicone.


Installation

Create cavity for recessed aluminum profile. Install Aluminum Profile "N" and secure using silicone adhesive. Once Aluminum profile is installed, install waterproof LED strips. For maximum waterproofing seal lens using Dow Corning 3145 silicone.


Cutting

To cut your aluminum profiles and make your lighting fixtures a custom length, simply snap the lens onto the profile, and place the channel onto a miter saw with the lens facing down. By doing this you can easily cut both the channel and lens to your desired length at the same time. We recommend using a NEW fine tooth blade to cut your aluminum channels for LED strips. The diffuser/lens is fragile and will easily break with an old blade. The easiest way to avoid breaking a lens or diffuser is to lower the saw blade slowly while cutting.


DOTLESS Lighting!

To achieve dot-free evenly diffused lighting in Aluminum Profile "N" choose from the following DOTLESS LED strips.
12V DOTLESS White LED Strip (Most Popular!)
24V DOTLESS White LED Strip


Best Used with the Following GlowbackLED Products


Extra Pair of Endcaps for Aluminum Profile N
Extra Lens/Diffuser for Aluminum Profile N
Sample of Aluminum Profile N
UL-Listed White LED Strips
RGB Color Changing LED Strips
RGBW Color Changing and White LED Strips
Dimmable and Nondimmable Power Supplies
Connectors
Recessed Aluminum Profile N 78in
Project Support Dotless LED fixtures
Due to shipping size restrictions, 94 inches is the MAX size for free shipping. You can select full-size 8ft (96 Inch) under product options before adding them to your cart, you will be charged with a FEDEX OVERSIZE fee at checkout.
View AllClose

/Product Specs

Specifications

Make sure to review product specs before purchasing LED strip. Contact-Us for assistance with product specs, application, or installation: 1-800-679-4902 | M-F | 9AM-5PM EST | Sales@bluegateinc.com

Length 6.5' (Actual Size 78")
Width 0.85 Inch (1.09" w/ flange)
Height 0.37 Inch (0.44" w/ flange)
Lens Frosted
Max Light Output Medium (4 Watts/ft)
Max Strip Width 0.48 Inch (12.2mm)
Mount Type:
Recess w/ Flange/Trim
Suggested MAX Wattage:
4 Watts/ft
Light Output:
Medium
MAX LED Strip Width:
12mm
Profile Width:
0.75 - 1 Inch
Profile Height:
0.40 - 0.75 Inch
Profile Length:
8ft
Applications:
In-Ground Lighting
Applications:
Exterior/Landscape Lighting
Spec Sheet:
short-desc-sec:

78 inches | 0.85" W x 0.37" H
