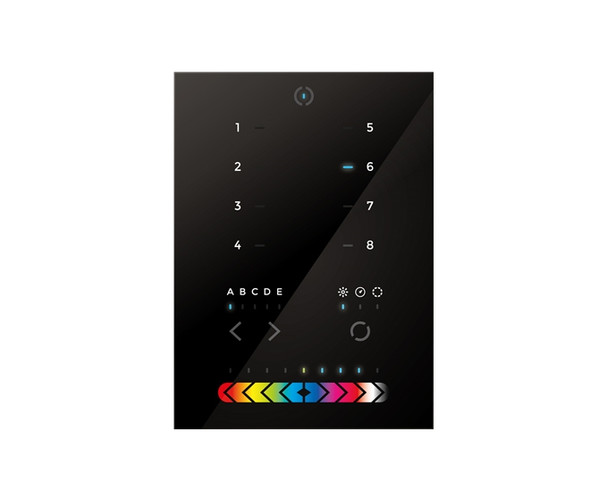

Nicolaudie Stick-KE2 Touch Sensitive DMX LED Controller

Usually Ships in 24 Hours
Project Support

/ Description

Our newest addition to our Nicolaudie STICK family of DMX LED controllers, the STICK KE2 is a simple yet powerful option that provides reliable and high quality control of illuminated lighting spaces. Allowing you to store up to 200 scenes and seamlessly control 1024 DMX channels of vivid RGB, RGB/W or CCT color temperature changing LED lighting on up to 5 zones, all through an elegant glass touch wall mounted interface. The Nicolaudie STICK KE2 features an abstract horizontal color (or color temperature) fader that allows for smooth transition to a desired color or color temperature, as well as control over the brightness of the lights, and speed of a color changing scene. The zone buttons allows users to see which of 8 scenes one has their light zone set to, while two simple arrow buttons allow for one to cycle through and select which of 5 zones is being controlled. This elegant and modern high quality LED controller is an excellent addition to large scale lighting applications with maximum color versatility desired.


  • Nicolaudie STICK KE2 Controller

  • Programming Software

  • Power Supply

Quick Specs

Material Glass Plate
Touch Interface Dynamic Glass Touch for precise control inputs
Output Protocol DMX-512 (use with DMXPRO receivers)
Works with: Color Changing RGB LEDs, Color Changing and White (RGBW) LEDs, Color Temperature Changing (CCT) LEDs, Dimming of White LEDs
Programming Program over ESA2 software (included) on PC, Mac, Tablet, Smartphone
Connections USB, Ethernet, RS-232, Clock, 8 dry contact ports, 5v Output Relay
Dimensions 5.75" x 4.17" x 0.39"
Mounting Single or double gang wall socket
DMX Channels 1024 (2 x 512)
Zone Control Up to 5 zones (or rooms)
Scene Control Up to 200
Standards EC, EMC, ROHS, ETL
Memory 32GB (MAX with SD card)
Warranty 3-Year Manufacturer Warranty


The Nicolaudie STICK KE2 is delivered as a clean-slate, blank system, It requires custom scenes (dynamic and static) to be programmed. Programming software is included for knowledgeable users. However, our in-house programmers are able to help you achieve your custom architectural LED lighting control functionality.


The Nicolaudie STICK KE2 support various protocols for integration into home automation systems. RS232, TCP triggering, Ethernet, and Dry-contact ports, and WiFi are all systems that work with the StickKE2. Moreover, the STICK KE2 can be controlled from a tablet or smartphone using the LightPad3 app. We work with integrators to implement our LED lighting systems and controlling solutions.
