6-8ft | Custom 1 Inch Trimless Recessed Linear

10-14 Day Lead Time
Project Support


Contact Us for Volume Pricing | Request a Quote

/ Description

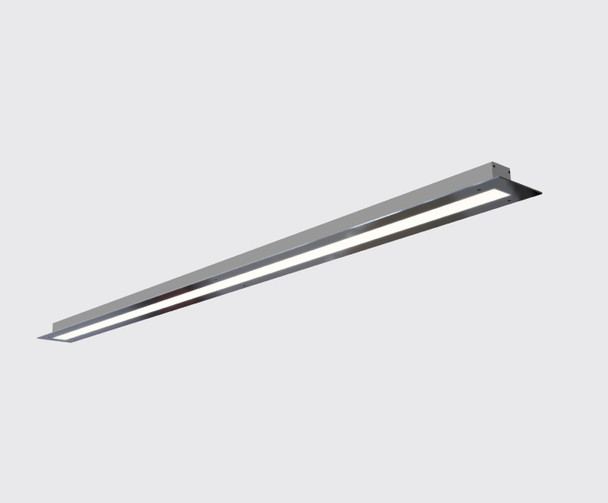

Our 6-8ft LVLBYT is custom made 1 Inch wide trim-less recess mount linear LED light fixture built any size from 72 up to 90 Inch (Enter Size under [Product Options] before adding to cart). It produces 500 lumens per foot and is a ultra-compact, but high-output "plaster-in" recessed light fixture. It's integrated "plaster-bead" is covered with drywall tape and sanded/finished down to only reveal a 1 inch continuous line of light. Our 6-8ft LVLBYT only requires 1.3 Inch of clearance but is low-voltage and requires a connection to a remote power supply. Select a dimmable remote power supply for smooth dimming functionality. It is available in 3000K, 4000K, or 6000K color temperatures and can be easily customized to meet your needs. Our 6-8ft LVLBYT can be recessed in dry-wall or solid ceilings. View Spec Sheet Here!


  • Compact Size: Only requires 7/16 inch of depth.

  • Customization: Made to any size for a high-end, custom look.

  • Dimming: Dimmable with Dimmable Power Supply

  • Lifetime: 50,000+ Hours

  • Warranty: Guaranteed by our 5-Year Warranty

  • Quick Turnaround! Typically ships out in 7-10 days

  • UL Listed: Can be specified on any commercial project!

Quick Specs


Custom Range: 72 Inch - 90 Inch


1 Inch (Aperture of light)


1.3 Inch

Input Voltage

24VDC (Standard), 12VDC Available

Lumen Output

SO: 922 | HO: 1,770 Lumens


SO: 19 Watts | HO: 37 Watts

Color Rendering

90+, 95+ (Available)


Recessed: Drywall, Solid, or Drop-Ceiling.

Fixture Type

Direct Linear Downlight


Our 2ft LVLBYT is available in standard lengths of 2ft, 4ft, 6ft, and 8ft, but can be made to custom sizes upon request. Multiple Fixtures can be connected to create un-interrupted, seamless, continuous runs of light. They can also be configured to make rectangles, squares, octagons, and more! Request a Quote for your custom size or shape linear lighting project.

Light Color

Our 8ft LVLBYT light fixture comes with a standard color rendering index value (CRI) over 90, CRI>95 is available upon request. It is conveniently available in three standard color temperatures: 3000K, 4000K, and 6000K, but can also be ordered in 2300K and 2700K. Custom color temperatures are available upon request (MOQ may apply).

Mounting Options

Our 8ft LVLBYT light fixture can easily be recessed into any drywall or solid ceiling type that allows for a 1.3 Inch tall (~ 0.8 Inch Clearance) recessed light fixture. Our LVLBYT features an integrated plaster-bead which allows you to "mud up" or "plaster finish" up to the aperture of the light. For the best effect, we recommend either installing on new drywall, or creating a "rebate" or notch in previously finished drywall for the cleanest lool. Framing is required on both sides of the opening for the fixture, the fixture is screwed in place through the intregrated plaster bead and into the framing. The framing does not need to run full lenght, but having it span the full length of the fixture or run makes the installation simpler. Refer to our Mounting Instructions for more information.

Power Supply Options

These Linear LED Fixtures require a remote power supply to operate. In many cases, multiple linear LED fixtures can be connected to a single power supply. We have power supplies available in Standard Dimmable (TRIAC/Phase), 0-10V Dimmable (requires wires for dimming), or non-dimmable (on/off) configurations. We also have power supplies pre-configured with connectors for plug and play installations.

8ft (72-96") LVLBYT, 1/2 Compact Recessed Linear LED Lighting
Project Support


Contact Us for Volume Pricing | Request a Quote
View AllClose

/Product Specs


Make sure to review product specs before purchasing Controller and Receivers. Contact-Us for assistance with more product specs, application, or installation: 1-800-679-4902 | M-F | 9AM-5PM EST | Sales@bluegateinc.com

Model # LVLBYT-96
Manufacturer GlowbackLED®
Dimensions 72 Inch - 96 Inch long x 1 Inch wide x 1.3 Inch high
Lamp Source LED
Listings UL-Listed
Power Consumption SO: 19 Watts | HO: 37 Watts
Input Voltage 120VAC -277VAC
Efficiency SO: 52 Watts | HO: 49 Lumens/Watt
Lumen Output SO: 922 | HO: 1,770 Lumens (SO: 123 | HO: 236 Lumens/ft)
Power Connection 8ft Cord with Connectors
Power System Remote Power Supply
Light Distribution Direct Light Distribution
Color Rendering CRI > 90 | CRI> 95 Available
Color Temperature 2300K (Extra/Amber Warm)
2700K (Incandescent Warm)
3000K (Warm White)
4000K (Natural White)
6000K (Bright White)
Mount Type Recess Mount to Drywall, Wood, or Solid Surfaces
Adhesive: Flush mount using all purpose adhesive
Double-Side Tape: ONLY USE VHB Double-Sided Tape.

Remote Driver 0-10V: Dim to 1% (New Construction/Recommended)
MLV Dimmable: Remodel (No additional wires)
Non-Dimmable: Switch On/Off
Warranty 5-Year Limited Warranty
Lifetime 70,000 hours.
Mount Type:
Recess Trimless (Plaster or Mud In)
Input Voltage:
24VDC (Requires remote power supply)
Available Finishes:
Satin Aluminum
Light Aperture Width:
1 Inch
Light Distribution:
Down Light
0-10V Dimmable
Standard Dimmable (TRIAC/Phase)
General Lighting
Fixture Look:
Recess Depth:
1.25 Inch
Emergency Lighting:
Needs Remote Inverter
Spec Sheet:
Installation Instruction:
Fixture Length:
