6-8ft | Cut-to-Size 3 Inch "Mud Finish" Recessed Linear
GlowbackLED 3 Inch Wide Trim-Less Recessed Linear LED Lighting built to your specs any size from 72 to 96 inches for a high end tailored look. UL Listed and manufactured in Miami. Plaster bead for smooth, trim-less finish.
Alternative Views:

Project Support

Contact Us for Volume Pricing | Sales@bluegateinc.com
Our Price: $482.00

Price with Selected Options: $482.00
Free shipping on orders over $200

Availability:: 10-14 Day Lead Time
Product Code: LVLBY3T-96

Light Output

Fixture Lumen Output*:

Remote Power Supply

LED Driver Types (Optional):

Color Temperature

Attractive Color Temp. Offerings*:
3000K Warm White
4000K Natural White
6500K Bright White
Custom Size

Enter size of LED Bar in inches*:
Enter size 72-94 Inches (Default:94")

Description Product Specs

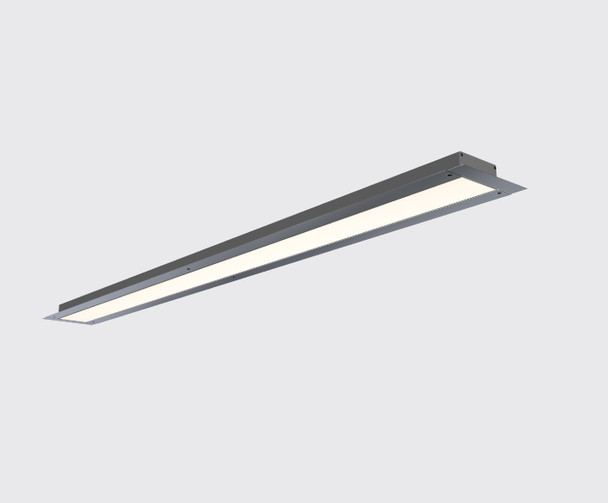

6-8 foot LVLBY3T is a custom made 3 Inch wide trim-less ("mud in" flange) flush mount recessed linear LED fixture built any size from 72 up to 94 Inches (Enter Size under [Product Options] before adding to cart). Available in either 350 or 900 lumens per foot light output levels, our LVLBY3T can be used for general lighting in homes, offices, retail spaces, and restaurants. The trim-less, smooth and continuous 3 inch wide recessed lighting is adaptable with any look or design. Our 6-8 foot LVLBY3T only requires 1.3 inches of clearance but is low-voltage and requires a connection to a remote power supply. Select a dimmable remote power supply for smooth dimming functionality. It is available in 3000K, 4000K, or 6000K color temperatures and can be easily customized to meet your needs. Our 6-8 foot LVLBY3T can be recessed in dry-wall or solid ceilings. View Spec Sheet Here!


  • Build: Anodized high-quality aluminum construction.

  • Customization: Can be customized to meet almost any desired look or design (MOQ may apply, Contact-Us).

  • Continuous Runs: Can be installed as single unit, or combined with multiple fixtures to create endless runs of linear lighting.

  • Dimming: Select a Dimmable Remote Power Supply

  • Lifetime: 50,000+ Hours

  • Warranty: Guaranteed by our 5-Year Warranty

  • American Made: Designed, built, and shipped out of our Miami, FL facility.

  • Quick Turnaround! Typically ships out in 7-10 days.

  • UL Listed: Can be specified on any commercial project!



Custom Range: 72" - 94"


3" (Aperture of light)



Input Voltage

24VDC (Standard), 12VDC Available

Lumen Output

Up to SO: 2,800 | HO: 7,200 Lumens


Up to SO: 40 Watts | HO: 90 Watts

Color Rendering

90+, 95+ (Available)


Recessed: Drywall, Solid, or Drop-Ceiling.

Fixture Type

Direct Linear Downlight

For full Product Specs, View Spec Sheet Here


Our 6-8ft LVLBY3T light fixture is comes with a standard color rendering index value (CRI) over 90, CRI>95 is available upon request. It is conveniently available in three standard color temperatures: 3000K, 4000K, and 6000K. Custom color temperatures are available upon request (MOQ may apply Contact-Us).

Mounting Options

Our 6-8ft LVLBY3T can easily be recessed from any drywall or solid ceiling type. The integrated plaster bead is used to "mud up" to the lens of the light fixture resulting in a trim-less (no visible flange) recessed linear light source. Contact-Us for custom mounting configurations. View our mounting type selection guide here.

View Full Mounting and Operation Instructions Here


Let our knowledgeable sales staff assist with your Recessed Linear Lighting Product Selection, Volume Discounts, or Customization. Contact-Us Today!
