1/2" Compact Recessed Linear LED Lighting


The ultimate cabinet lighting solution! Use our 1/2" compact recessed linear LED light bar series to illuminate your cabinets, display cases, closets, shelving and more. The slim and compact design allow these LED bars to easily recess into a wide variety of materials and surfaces. The recessed LED bars are built to your specs in any configuration and up to 94" in one single piece. Our compact 1/2" recessed linear LED bars are available in (2) different housing types: C and D for added versatility. They can produce up to 200 lumens/foot, and are available in a full range of color temperatures from 2200K to 6500K; they are also available in color changing RGB, RGB+W, and tunable white configurations.

The Housings

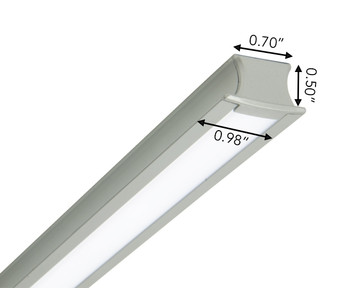

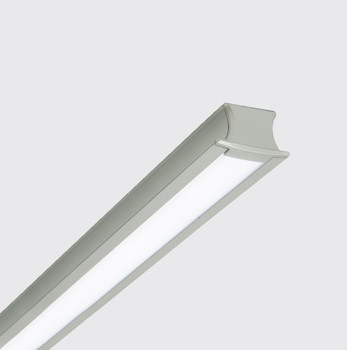

C features our lowest profile design, with under a 0.25"depth, this recessed LED bar is ideally suited for shallower surfaces and materials, and applications where the light source is discreetly hidden. LED "DOTS" are visible with C. The added depth with D allows it to create completely "DOTLESS" recessed linear LED lighting. Use D on deeper surfaces and applications where the light source is readily visible.





Specs at a Glance

  • Available in a single run ANY length up to 94" (for free shipping qualification, 98" MAX with shipping surcharge)
  • Low Voltage: 12VDC Standard, 24VDC available upon request
  • Light Output: 200 Lumens/foot (depends on size)
  • Power Consumption: 2.5 Watts/foot (depends on size)
  • Color Options: 2200K, 2700K, 3000K, 4500K, 6500K, RGB, RGB+W, Tunable White
  • Power Feed: 8ft w/ connector, exits from end-cap
  • Mounting Surfaces: Any, wood and drywall most popular
  • Warranty: 3-Year
  • UL-Listed

Need Help?

Send us your lighting plans, elevations, and more! Let us help you specify the correct linear LED bar system for your project. We offer industry leading Project Support!

1-800-679-4902

M-F | 9AM-5PM | EST
or
Sales@bluegateinc.com

Sort By:
Page of 1
Cut-to-Size, Built-to-Size Recessed Linear LED Bar with Medium High Light Output 200 lumens/foot. Available in 4 inches to 24 inch length. Mounting hardware, 8ft of Wire, Smart Connector Included 1/2" Wide Compact Recessed LED Bar up to 24"


Any Size up to 24"
5 Watts
400 Lumens

Our Price: $49.90
Cut-to-Size, Built-to-Size Recessed Linear LED Bar with Medium High Light Output 200 lumens/foot. Available in 24"-36" inch length. Mounting hardware, 8ft of Wire, Smart Connector Included 1/2" Wide Compact Recessed LED Bar 24"-36"


Any Size 24"-36"
7.5 Watts
600 Lumens

Our Price: $59.90
Cut-to-Size, Built-to-Size Recessed Linear LED Bar with Medium High Light Output 200 lumens/foot. Available in 36"-48" inch length. Mounting hardware, 8ft of Wire, Smart Connector Included 1/2" Wide Compact Recessed LED Bar 36"-48"


Any Size 36"-48"
10 Watts
800 Lumens

Our Price: $69.90
Cut-to-Size, Built-to-Size Recessed Linear LED Bar with Medium High Light Output 200 lumens/foot. Available in 48"-60" inch length. Mounting hardware, 8ft of Wire, Smart Connector Included 1/2" Wide Compact Recessed LED Bar 48"-60"


Any Size 48"-60"
12.5 Watts
1,000 Lumens

Our Price: $85.90
Cut-to-Size, Built-to-Size Recessed Linear LED Bar with Medium High Light Output 200 lumens/foot. Available in 60"-72" inch length. Mounting hardware, 8ft of Wire, Smart Connector Included 1/2" Wide Compact Recessed LED Bar 60"-72"


Any Size 60"-72"
15 Watts
1,200 Lumens

Our Price: $88.90
Cut-to-Size, Built-to-Size Recessed Linear LED Bar with Medium High Light Output 200 lumens/foot. Available in 72"-84" inch length. Mounting hardware, 8ft of Wire, Smart Connector Included 1/2" Wide Compact Recessed LED Bar 72"-84"


Any Size 72"-84"
17.5 Watts
1,400 Lumens

Our Price: $92.90
Cut-to-Size, Built-to-Size Recessed Linear LED Bar with Medium High Light Output 200 lumens/foot. Available in 84"-94" inch length. Mounting hardware, 8ft of Wire, Smart Connector Included 1/2" Wide Compact Recessed LED Bar 84"-94"


Any Size 84"-94"
20 Watts
1,600 Lumens

Our Price: $95.90
